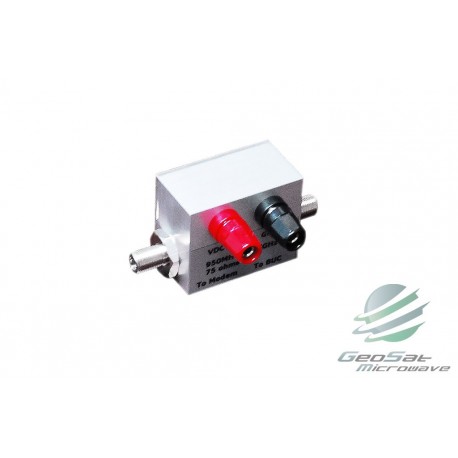

GeoSat Microwave Bias-Tee
GST6ADC
New
• Bandwidth 950MHz to 2GHz
• Reference & IF Supplied from Modem
• Up to 6 Amps DC input
• 15 - 60 VDC Power input
• “N” or “F” RF Interface Options
• DC port-Red, Ground port-Black
• 3 Year GeoSat Product Warranty
Specifications:
| Item | Specification | |
| RF Frequency | 950MHz ~ 2GHz | |
| Voltage | 15 ~ 64V DC | |
| Current | 6 Amps. max. | |
| Insert Loss ▼ | ||
| 10 MHz | 1.0dB Max. | |
| 950 MHz-1.45GHz | 1.0dB Max. | |
| DC Interface | Banana Jack | |
| RF Interface ▼ | ||
| GST6A10DCF | From Modem and to VSAT : F type | |
| GST6A10DCF | From Modem and to VSAT : N type | |
| Impendence ▼ | ||
| F type | 75 Ohms | |
| N type | 50 Ohms | |
| Temperature Range ▼ | ||
| Operating | -40 deg C to +55 deg C | |
| Storage | -40 deg C to +75 deg C | |
| Dimensions (Without Connector) | 53.1x43.55x21.3mm | |
| Weight | 150g. max. | |
| Download the Specification in PDF Format | ||
 |
Bias-Tee GST6ADC Specsheet |
|
