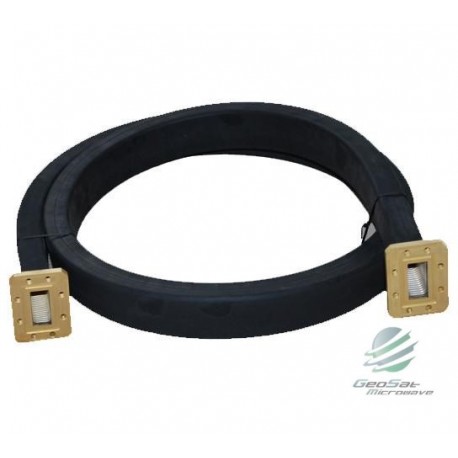

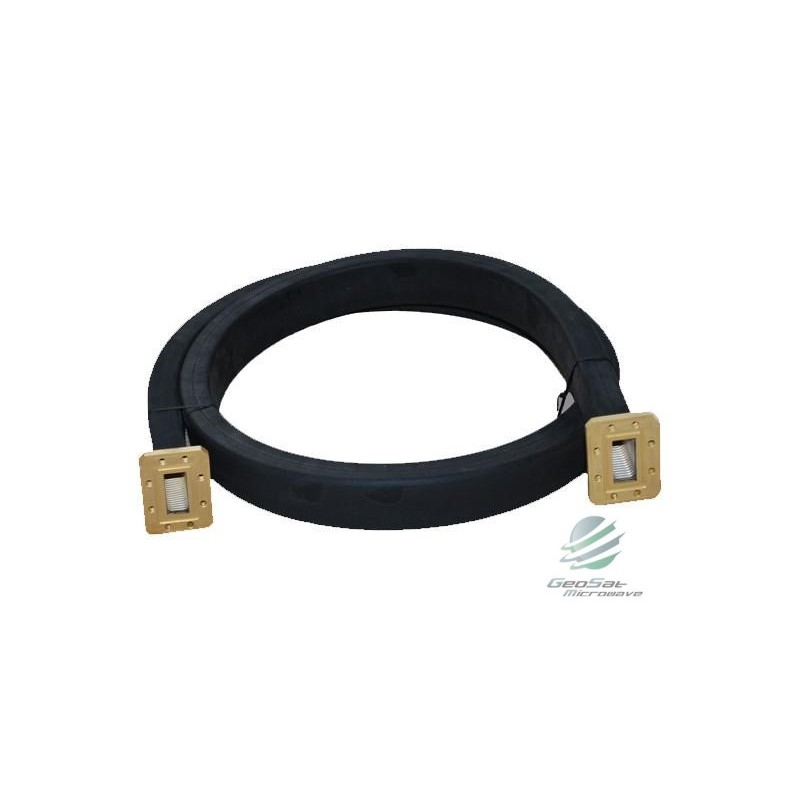

GeoSat Microwave 3ft C-Band Flex Waveguide
GFWC3137
New
- Type "TF" is more common of the two types. "TF" is a twistable and flexible waveguide;
- Type "SF" is a style used when a higher power application is required;
- Note the "SF" version does not have to have a jacket for pressurization, however the "TF" style does require this jacket.
Specifications:
WR137 Flexible Waveguide – we have several pieces of brand new waveguide 36 inches long C-Band in the manufacturer’s original packaging. FlexTwist™ Flexible Twist for WR137, 5.85–8.2 GHz, with interface types CPR137G and CPR137G, 900 mm
|
Specifications |
|
| Operating Frequency Band | 5.85 – 8.2 GHz |
| Attenuation | 0.09 dB/ft | 0.30 dB/m |
| Average Power | 2000 W |
| Component Flexible | Twist |
| Waveguide Size | WR137 |
| Interface 1 | CPR137G |
| Interface 2 | CPR137G |
| Length | 36 in (3Ft) |
| Download the Specification in PDF Format | ||
 |
GeoSat Microwave 3ft C-Band Flex WaveguideSpecsheet |
|
