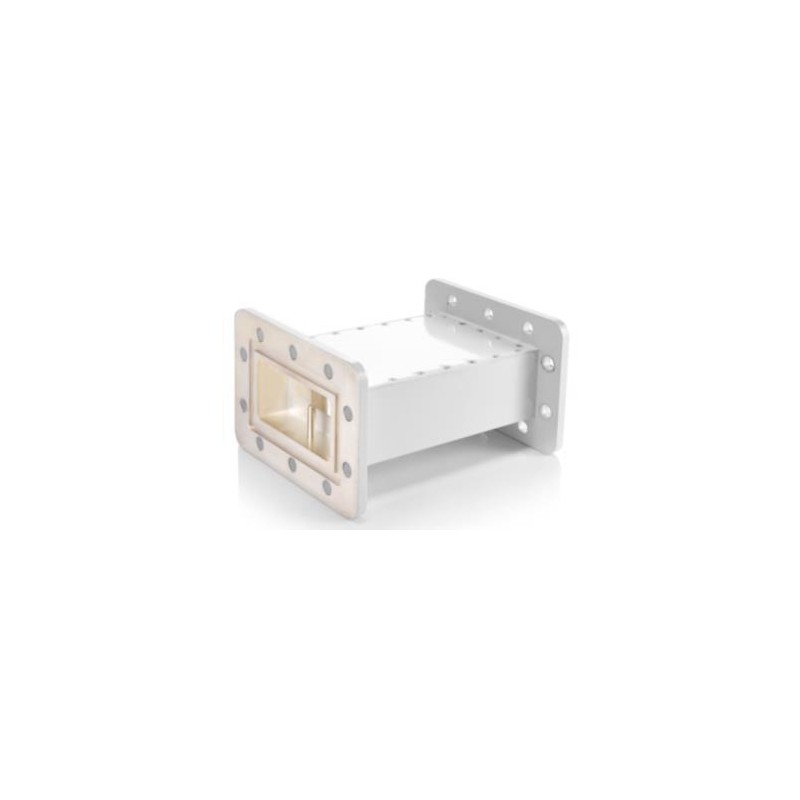

C-Band BPF 3.625 - 4.2 GHz
BPFC362542
New
- Frequency range 3.625 - 4.2 GHz
- 5G Interference Rejection
- VSWR 1.4 : 1 max.
Specifications:
| Parameter | Specification |
|
Frequency range |
3.625 - 4.2 GHz |
|
Rejection |
40dB min. @ IF pass band +50MHz 60dB min at 3.475 GHz & 4.35 GHz 70dB min at 3.425 GHz & 4.40 GHz |
|
VSWR |
1.4 : 1 max |
|
Insertion Loss |
0.5 dB max. |
|
Waveguide flange |
CPR-229G at input CPR-229F at output |
|
Dimension |
70.0 x 98.8 x 120.0 mm |
|
Weight |
650 g |
|
Download the Specification in PDF Format |
||
 |

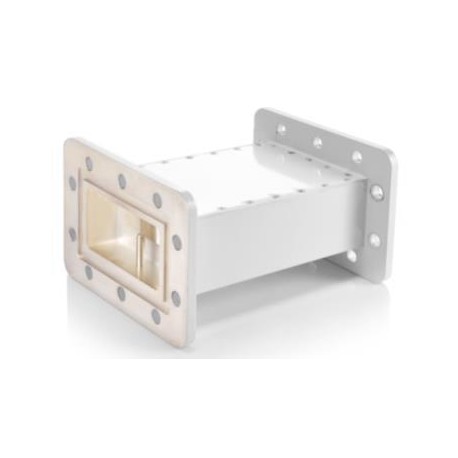

Geosat C Band Waveguide Band Pass Filter |
|
|
|
||
