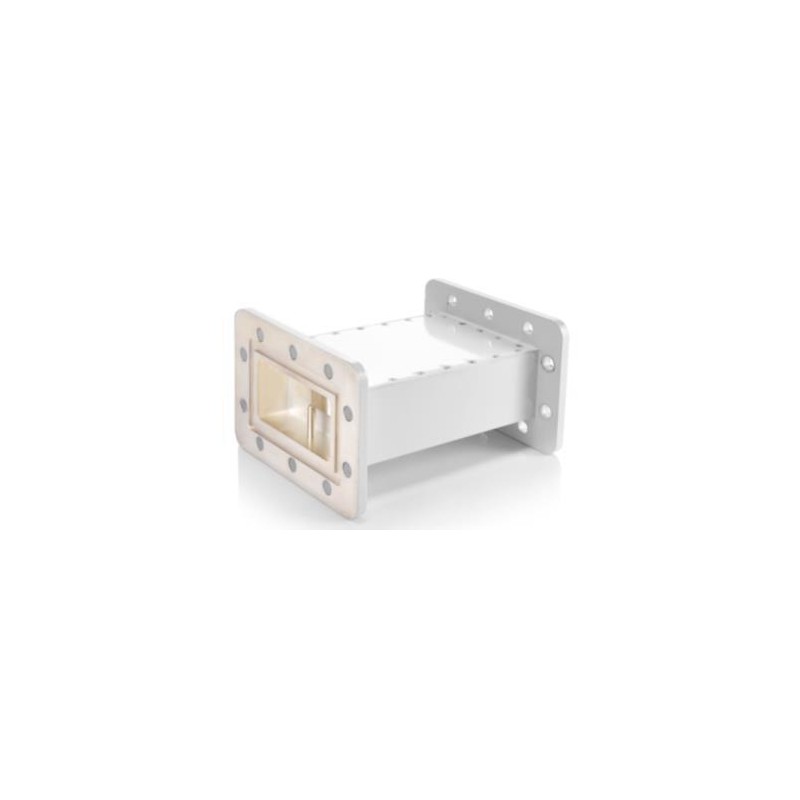

Geosat C Band Waveguide Band Pass Filter View larger

C-Band BPF 3.7 - 4.2 GHz

BPFC3742

New

  • Frequency range 3.7 - 4.2 GHz
  • 5G Interference Rejection
  • VSWR 1.4 : 1 max.

More details

Specifications:

Parameter Specification

Frequency range

3.7 - 4.2 GHz

Rejection

40dB min. @ IF pass band +50MHz

60dB min at 3.475 GHz & 4.35 GHz

70dB min at 3.425 GHz & 4.40 GHz

VSWR

1.4 : 1 max

Insertion Loss

0.5 dB max.

Waveguide flange

CPR-229G at input

CPR-229F at output

Dimension

70.0 x 98.8 x 120.0 mm

Weight

650 g



Download the Specification in PDF Format

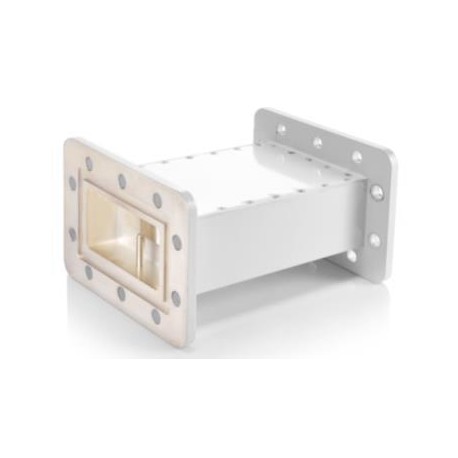

Geosat C Band Waveguide Band Pass Filter
