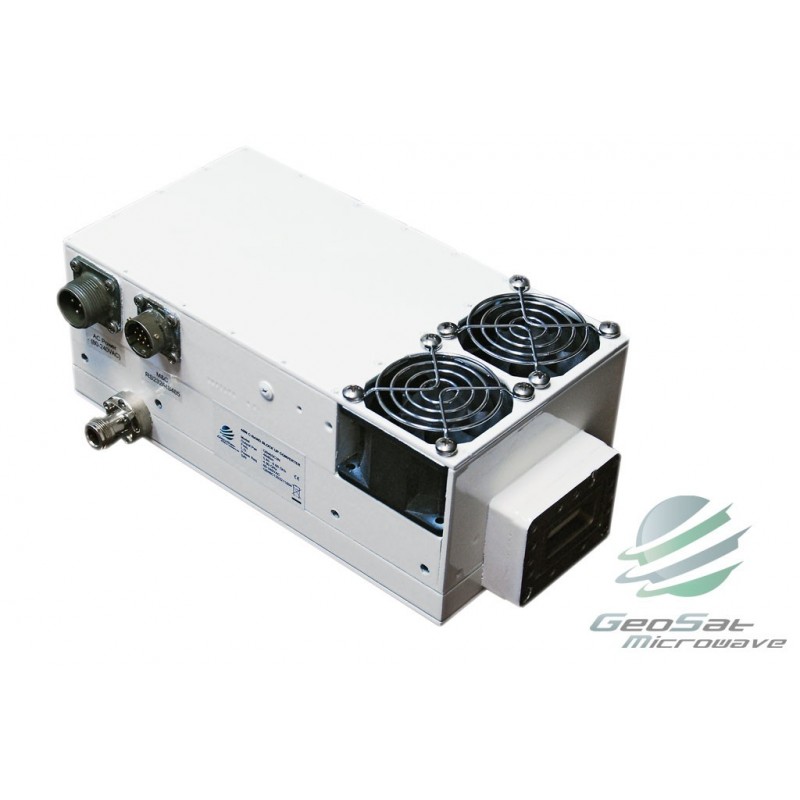

GeoSat Microwave 25W C-Band Block Up-Converter (BUC) | Model: GB44SC3N View larger

GeoSat 25W C-Band (5.85 ~ 6.60GHz) BUC Block Up-Converter | Model: GB44SC3N

GB44SC3N

New

•  Min. 44dBm Output P1dB over Temp
•  Light Weight & Small Size
•  Advanced M&C Interface (RS232/485)
•  Field-Exchangeable IF Connector
•  3 Year GeoSat Product Warranty

More details

Specifications:

Section Item Specification
  Power Requirement Voltage 80 - 240V AC
Power Consumption 300W max
  Input Characteristics Frequency Range 950 ~ 1700MHz
Impedance 75 / 50 Ohms
Return Loss (VSWR) > 15 dB
IF Connector F / N-Type (Female)
  Output Characteristics Frequency Range 5.85 ~ 6.60GHz
Power @ 1dB Comp. Min. 44dBm over temp.
RF Connector PR137G
  Transfer Characteristics Frequency Sense Non Inverted
Local Frequency 4.9 GHz
External Reference Frequency 10MHz, Sine wave
Gain 70 dB typ. @ 25 ℃
Phase Noise ▼
100Hz < -65dBc / Hz
1kHz < -75dBc / Hz
10kHz < -85dBc / Hz
100kHz < -95dBc / Hz
  Spurious - 50 dBc
  IMD (with 2 carries @6db back off) - 30 dBc
  Mute HPA is turned off in case of LO unlocked.
  Mechanical Dimension (mm) 257 x 140 x 95mm
Weight 3.0kg
Painting White Color
  Operating Temperature 40℃ ~ + 55℃
  -



Download the Specification in PDF Format

25W C-Band Block Up-Converter (BUC) GB44SC3N Specsheet
