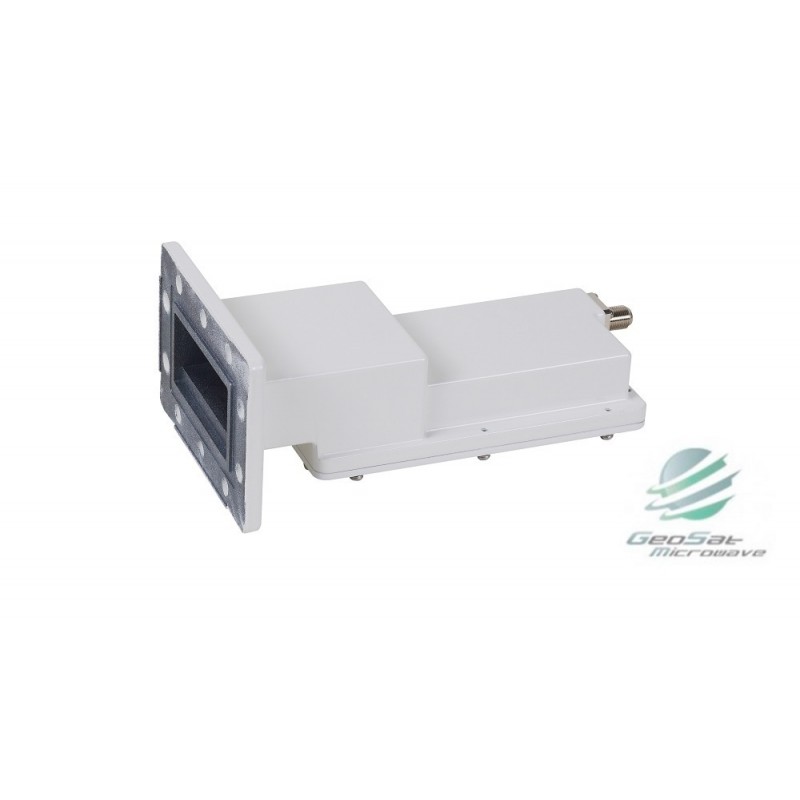

Geosat Low Noise Block C-Band (3.625 – 4.2 GHz) PLL (LNB)
GLC110C(5,10,25)
New
- Input Freq. - 3.625 – 4.2 GHz
- Local Frequency - 5.15 GHz
- L.O stability at -40 to +60℃ - ±5, 10, 25 KHz max
- Input waveguide flange - WR-229
- Power Supply - +12 to +24V DC
Specifications:
| Parametertd> | Specificationstrong> | |
| Input (GHz)td> | 3.625 – 4.2td> | |
| Output (MHZ)td> | 950 – 1525span> | |
| LO (GHz)td> | 5.15td> | |
| LO Stabilitytd> | ± 5, 10, 25td> | |
| Gain (dB)td> | 55~70td> | |
| N/Temp.‘Ktd> | 30 | |
| Noise temperaturespan> | 30‘K max.td> | |
| Conversion gain at -40 to +60℃td> | 60dB typ. (55dB min. 70dB max.)td> | |
| Gain flatnesstd> | 4 dBp-p maxtd> | |
| Gain flatness at -40 to +60℃td> | 4 dBp-p maxtd> | |
| Gain ripple at per 27MHz, -40 to +60℃td> | 1 dBp-p maxtd> | |
| L.O stability at -40 to +60℃td> | ±5, 10, 25 KHz maxtd> | |
| Image rejectiontd> | 45 dBc mintd> | |
| Phase noisetd> | -73 dBc/Hz @1KHztd> | |
| -83 dBc/Hz @10KHztd> | ||
| -93 dBc/Hz @100KHztd> | ||
| Output P1dBtd> | +5 dBm min.td> | |
| Input VSWRtd> | 2.5 : 1 max.td> | |
| Output VSWRtd> | 2.5 : 1 max.td> | |
| Input waveguide flangetd> | WR-229td> | |
| Output connectortd> | F, N-Type female (option)td> | |
| Power supplytd> | +12 to +24V DCtd> | |
| Required currenttd> | 250 mA maxtd> | |
| Operating temperaturetd> | -40 to +60℃td> | |
| Waterprooftd> | IP 67td> | |
| Dimension (exclude connector)td> | 98.8 x 70.0 x 80.5 mmtd> | |
| Weighttd> | 550 gtd> | |
|
Download the Specification in PDF Format |
||
 |
C-Band Low Noise Block (LNB) GLC110C(5,10,25)strong> Specsheet |
|
