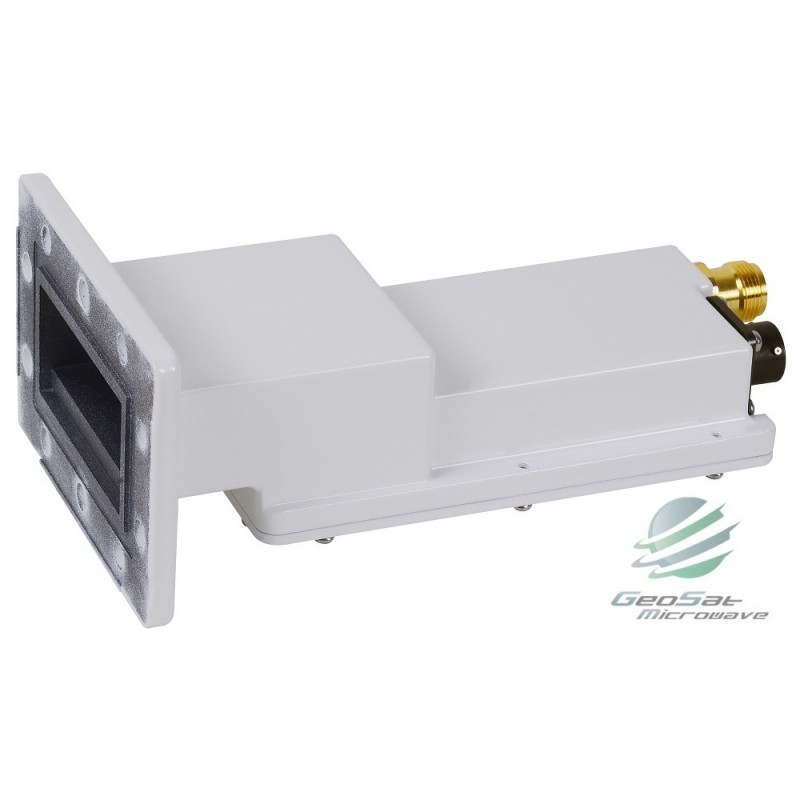

Geosat Low Noise Amplifiers C-Band (4.5 – 4.8 GHz) (LNA)
GLAC4548
New
- Input Freq. - 4.5 – 4.8 GHz
- Input waveguide flange - MS3112E10-6P (option)
- Power Supply - +12 to +24V DC
Specifications:
| Parameter | Specification | |
| Frequency range | 4.5 – 4.8 | |
| Noise temperature | 30‘K max. | |
| Conversion gain at -40 to +60℃ | 55 dB typ. (50dB min, 60dB max.). | |
| Gain flatness | 4 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 4 dBp-p max. | |
| Gain ripple at per 36MHz, -30 to +60℃ | 1 dBp-p max. | |
| Output P1dB | +5 dBm min. | |
| Input VSWR | 2.2: 1 max | |
| Output VSWR | 2.2: 1 max | |
| Input waveguide flange | WR-229 | |
| Output connector | N, SMA-type female (option) | |
| Power connector | MS3112E10-6P (option) | |
| Power supply | +12 to +24V DC | |
| Required current | 250 mA max | |
| Operating temperature | -40 to +60℃ | |
| Waterproof | IP 67 | |
| Dimension (exclude connector) | 98.8 x 70.0 x 164.5 mm | |
| Weight | 630 g | |
|
Download the Specification in PDF Format |
||
 |
Low Noise Amplifiers C-Band 310 series (LNA) GLAC4548 Specsheet |
|
