Geosat Block Downconverter C-Band 310 (BDC) View larger

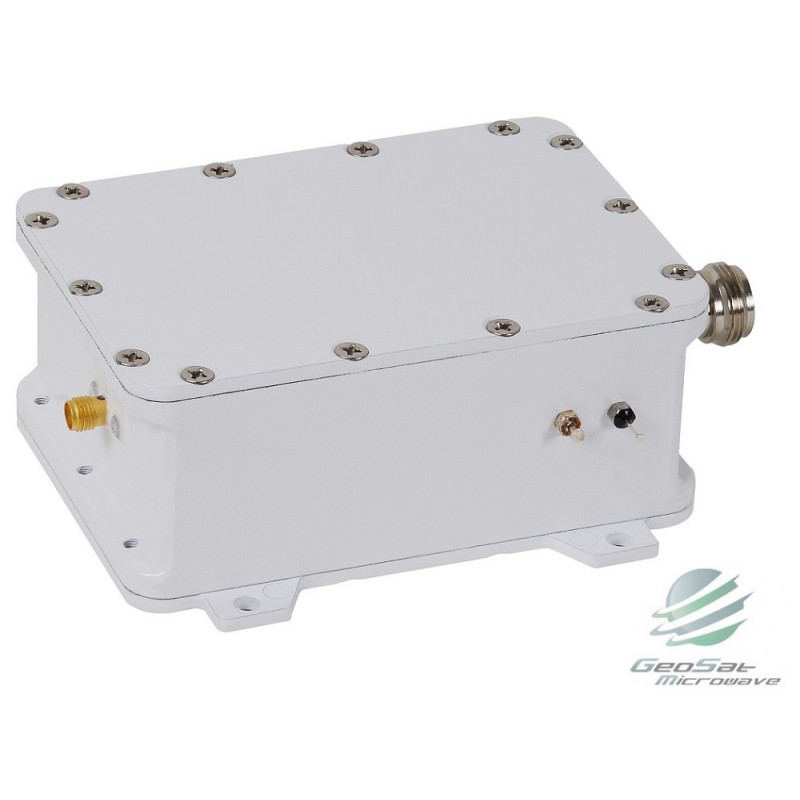

Geosat Block Downconverter C-Band (4.5 - 4.8 GHz) (BDC)

GBDС4548(5, 10, 25)

New

  • Input Freq. - 4.5-4.8 GHz
  • L.O Freq. - 5.95
  • Noise figure - 10  dB max
  • L.O stability at -40 to +60℃ - ±5, 10, 25 KHz max.
  • Input waveguide flange - Feed thru and/or output connector
  • Power Supply - +12 to +24V DC

More details

Specifications:

Parameter Specification
Input Freq. 4.5 - 4.8 GHz
Output Freq. 1150 – 1450MHz
L.O Freq. 5.95 GHz
Noise figure 10  dB max
Conversion gain at -40 to +60 40 dB typ. (37dB min. 43dB max.)
Gain flatness 4 dBp-p max.
Gain flatness at -40 to +60 5 dBp-p max.
Gain ripple at per 27MHz, -30 to +60 1 dBp-p max.
L.O stability at -40 to +60 ±5, 10, 25 KHz max.
Image rejection 45 dBc min.
Phase noise -73 dBc/Hz (@1KHz)
-83 dBc/Hz (@10KHz)
-93 dBc/Hz (@100KHz)
Output P1dB +5 dBm min.
Input VSWR 2.0: 1 max
Output VSWR 2.0: 1 max
Input connector SMA-type female
Output connector F, N, SMA-type female (option)
Power supply +12 to +24V DC
Power supply connector Feed thru and/or output connector
Required current 300 mA max.
Operating temperature -40 to +60
Waterproof IP 67
Dimension (exclude connector) 108.0 x 94.0 x 46.0 mm
Weight 620 g


Download the Specification in PDF Format

Geosat Block Downconverter C-Band (BDC) GBDC4548(5,10,25) Specsheet
