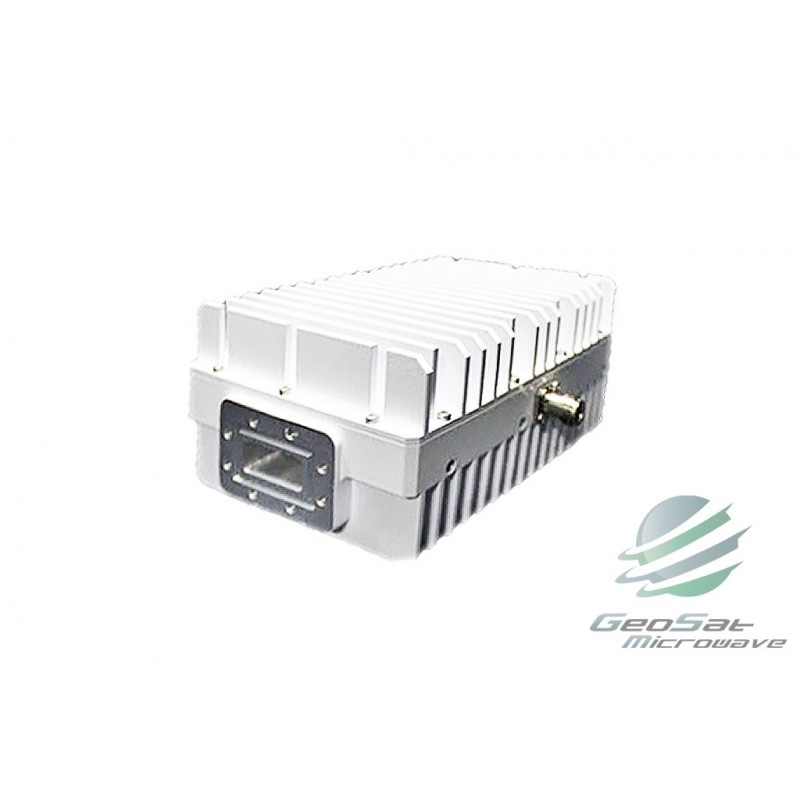

GeoSat Microwave 10W C-Band Standard (5.85 ~ 6.425GHz) Block Up-Converter (BUC) | Model: GB40NSF01 View larger

GeoSat Microwave 10W C-Band Standard (5.85 ~ 6.425GHz) Block Up-Converter (BUC)

GB40NSF01

New

• High Linearity / High Efficiency
• Light Weight & Small Size
• Low Power Consumption 64W Typ.
• Int & Ext Reference Detection & Auto Selection
• LED Status Intication
• 3 Year GeoSat Product Warranty

More details

Specifications:

Section Item Specification
  Power Requirement Voltage 24VDC or 48 VDC (Optional)
Power Consumption 64W typ.
  Input Characteristics Frequency Range 950 ~ 1525 MHz (Standard)
LO Frequency 4.9 GHz
Return Loss (VSWR) 1.5 : 1 max. @ Input port
IF Connector Type N (female) or Type F (female), Optional
  Output Characteristics Frequency Range 5.85 ~ 6.425 GHz (Standard)
Power @ 1dB Comp. 40.0 dBm  typ. (10W)
RF Connector WG-137 (with Groove)
  Transfer Characteristics Gain nom. 65 dB typ.
Gain Flatness ± 2.0 dB max. @ room temp over full band
Gain Variation ±2.0dB over temp.
Spectral Regrowth -30 dBc typ.
External Reference Frequency External 10MHz @ IF Cable / Power Level : -5 dBm min
Internal Ref. Stability 0.28 ppm
Phase Noise ▼
100Hz < -70dBc / Hz
1kHz < -80dBc / Hz
10kHz < -82dBc / Hz
100kHz < -105dBc / Hz
  Spurious -60 dBc
  LED Status Green - The PLL lock status / Off - Loss of lock
  IMD (with 2 carries @6db back off) -30 dBc
  Mechanical Dimension (mm) 192(L) X 131(W) X  97(H) mm, exclude connector
Weight 2.9kg
  Temperature Operating: -40°C to +60°C Storage: -45°C to +85°C
  -



Download the Specification in PDF Format

10W C-Band Block Up-Converter (BUC) GB40NSF01 Specsheet
