GeoSat 10W Ka-Band BUC Block Up-Converter N-Connector View larger

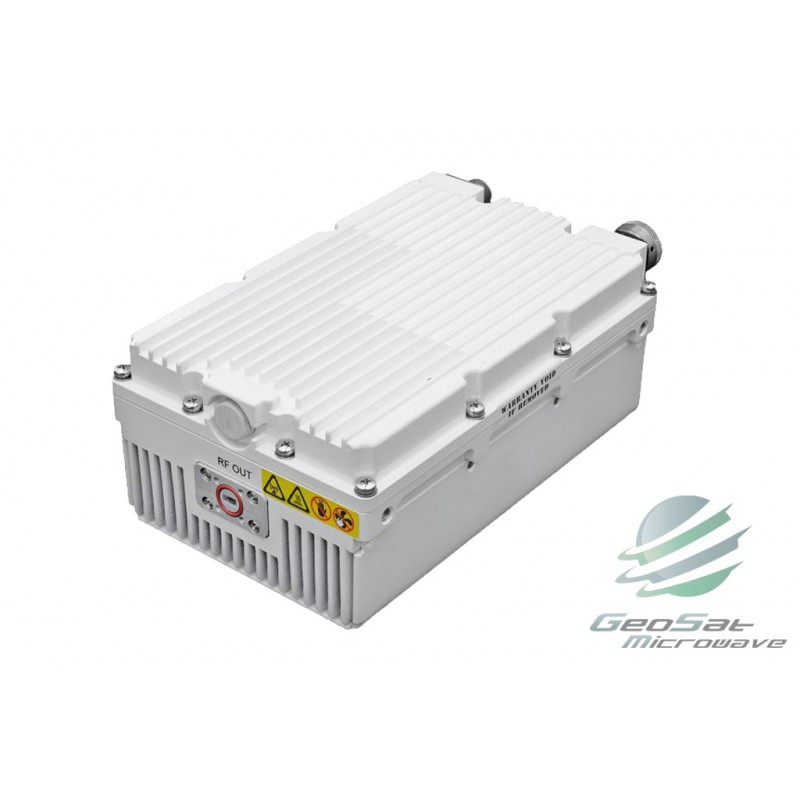

GeoSat 10W Ka-Band (30-31 GHz) BUC Block Up-Converter N-Connector

GB10KA31N

New

• RF Frequency - 30-31 GHz
•
Low power consumption
•
Higher reliability from integrated design principle
•
Compact size and light weight
•
Meet ETSI, FCC standards

More details

Specifications:

Section

Item

Specification



Power Requirement

RF Frequency

30-31 GHz

IF Frequency

1000-2000 MHz



Input Characteristics

External Reference

10 MHz, 0±5 dBm

Saturated Output Power

≥40 dBm

Rated Output Power

40 dBm

Linear Output Power

37 dBm

IMD3 @3dB back-off from Rated Output Power

-25 dBc (max)

Small Signal Gain

67 dB

Gain Variation

1 dB p-p/ 36 MHz
3 dB p-p/ 500 MHz
4 dB p-p/ 1000 MHz

Gain Stability

±1.5 dB

Gain Adjustment Range

20 dB (Step: 0.1 dB



Transfer Characteristics

Phase Noise (IES-308/309)

-63 dBc/Hz @100 Hz
-73 dBc/Hz @1 KHz
-83 dBc/Hz @10 KHz
-93 dBc/Hz @100 KHz

Output Spurious

-60 dBc (max)

Power Supply

+18 to +36 VDC

Power Supply Draw @Rated Output Power

120 W

Power Supply Draw @Linear Output Power

90 W

RF Output Connector

WR28-G (Grooved)

RF Output VSWR

1.25:1

IF Input Connector

N-Type Female

IF Input VSWR

1.5:1

Power Supply Connector

ACS02E10SL-4P

Monitor and Control Connector

PT06E-12-14S RS-485, RS-232 & Ethernet (Telnet)

LED Indicators

LEDs off: Equipment functioning properly Yellow: PLL unlock alarm

Size

206*136*88 mm

Weight

3.5 Kg



Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 F ASL



Download the Specification in PDF Format
