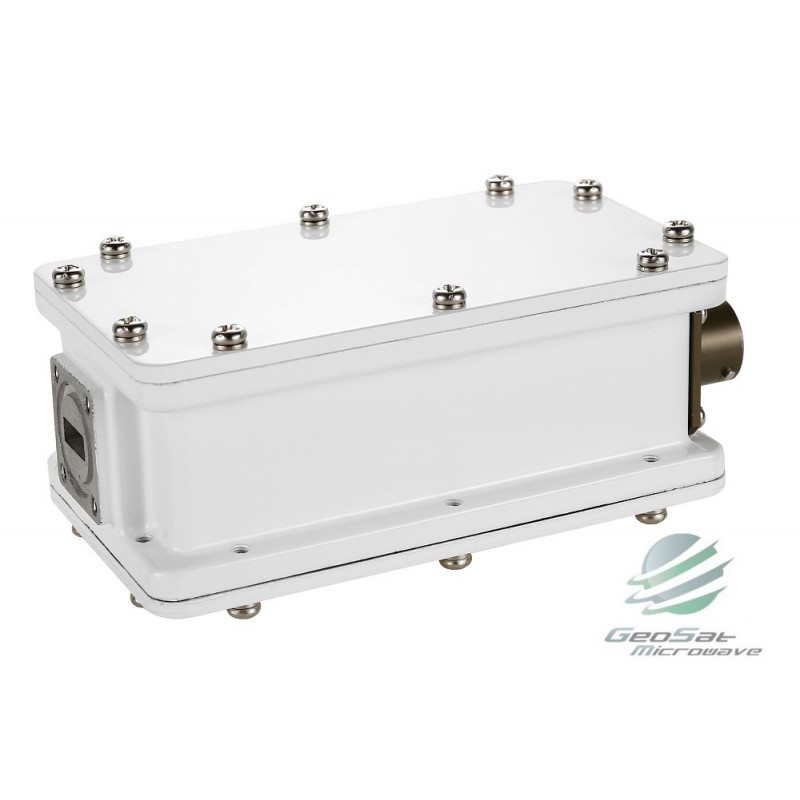

Geosat Low Noise Amplifiers Ka-Band 910 (LNA) View larger

Geosat Low Noise Amplifiers Ka-Band (21.2 - 22.2 GHz) (LNA)

GLAKA2122

New

  • Input Freq. - 21.2-22.2 GHz
  • Input waveguide flange - MS3112E10-6P (option)
  • Power Supply - +12 to +24V DC

More details

Specifications:

Parameter Specification
Frequency range 21.2 - 22.2 GHz
Noise figure 1.5 dB max
Conversion gain at -40 to +60 55dB typ. (50dB min. 60dB max.)
Gain flatness 4 dBp-p max.
Gain flatness at -40 to +60 5 dBp-p max.
Gain ripple at per 27MHz, -40 to +60 1 dBp-p max.
Output P1dB +5 dBm min.
Input VSWR 2.2 : 1 max
Output VSWR 2.2 : 1 max
Input waveguide flange WR-42
Output connector N, SMA-type female (option)
Power connector MS3112E10-6P (option)
Power supply +12 to +24V DC
Required current 250 mA max
Operating temperature -40 to +60℃
Waterproof IP 67.
Dimension (exclude connector) 60.0 x 45.0 x 111.5 mm
Weight 450 g


Download the Specification in PDF Format

Geosat Low Noise Amplifiers Ka-Band (LNA) GLAKA2122 Specsheet
