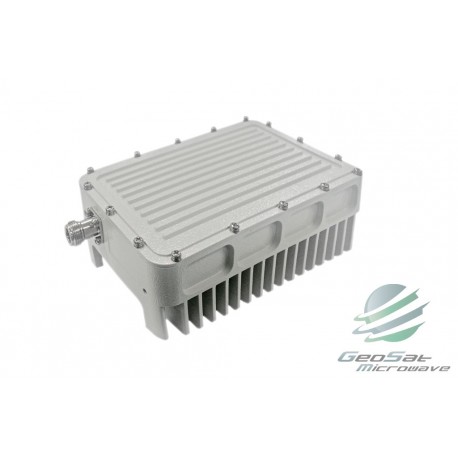

GeoSat 4W Ka-Band (29.5 ~ 30GHz) BUC Block Up-Converter | Model: GB36SKA1N View larger

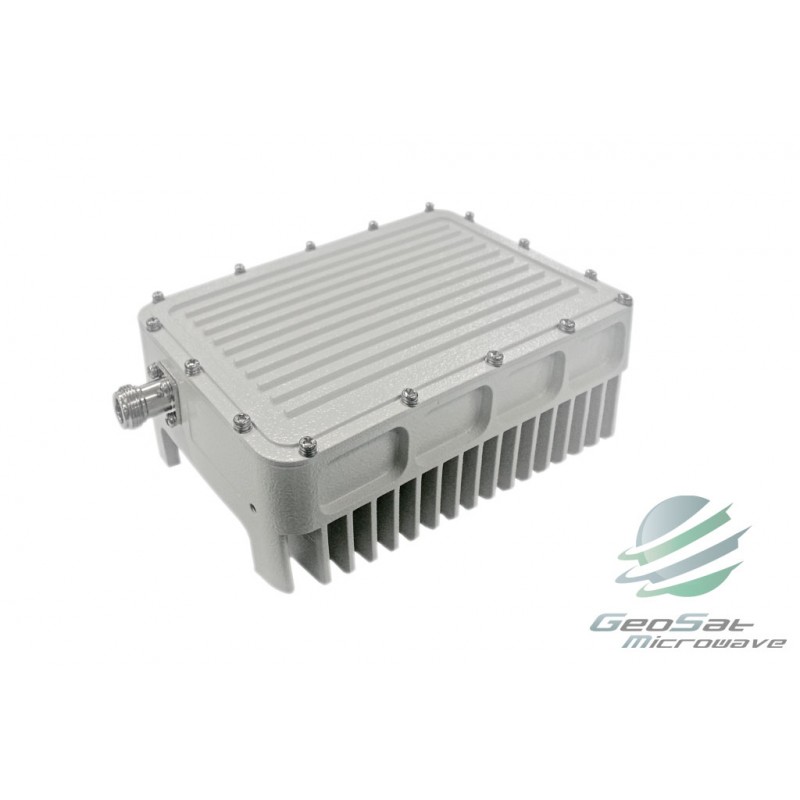

GeoSat 4W Ka-Band (29.5 ~ 30GHz) BUC Block Up-Converter | Model: GB36SKA1N

GB36SKA1N

New

• Min. 36dBm Output P1dB over Temp.
•
Light Weight & Small Size
•
Leak Protected and 100% Screened
•
RoHS Compliant
• 3
Year GeoSat Product Warranty

More details

Specifications:

Section Item Specification
  Power Requirement Voltage +15 ~ +24V DC
Power Consumption 65W max
  Input Characteristics Frequency Range 950 ~ 1450MHz
Impedance 75 / 50 Ohms
Return Loss (VSWR) > 10 dB
IF Connector F / N-Type (Female)
  Output Characteristics Frequency Range 29.5 ~ 30GHz
Power @ 1dB Comp. Min. 36dBm over temp.
Return Loss (VSWR) > 10 dB
RF Connector WR 28
  Transfer Characteristics Frequency Sense Non Inverted
Local Frequency 28.55 GHz
External Reference Frequency 10MHz, Sine wave
Gain 57 dB typ. @ 25 ℃
Phase Noise ▼
100Hz < -60dBc / Hz
1kHz < -70dBc / Hz
10kHz < -80dBc / Hz
100kHz < -90dBc / Hz
  Output Noise 18.3  to 21.2GHz < -150dBm
  Mute HPA is turned off in case of LO unlocked.
  Mechanical Dimension (mm) 190 x 145 x 68mm
Weight 2.5kg
Painting White Color

  Operating Temperature 40℃ ~ + 55℃
  -



Download the Specification in PDF Format

4W Ka-Band Block Up-Converter (BUC) GB36SKA1N Specsheet
