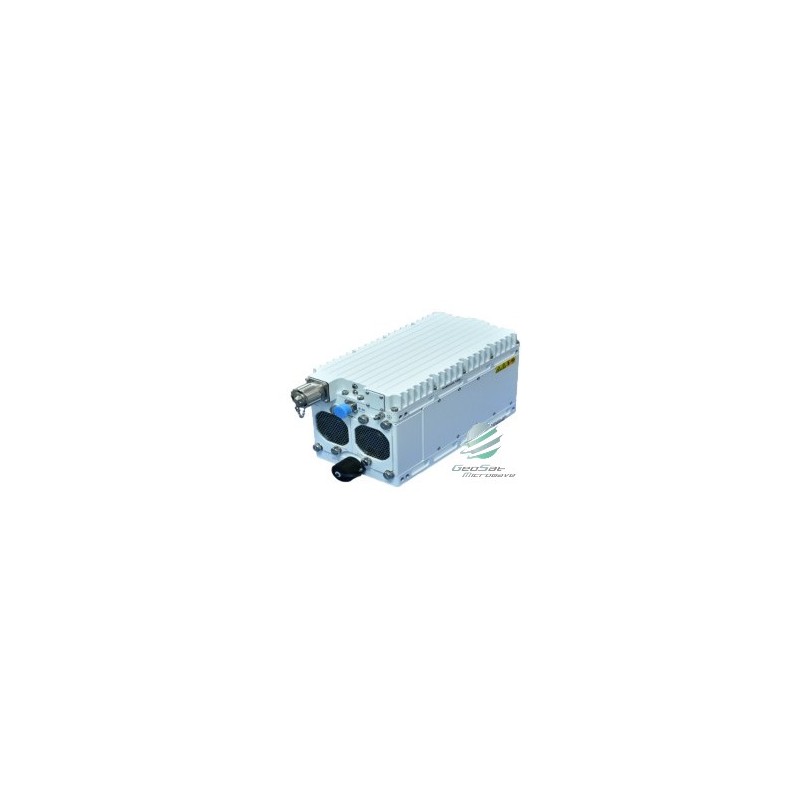

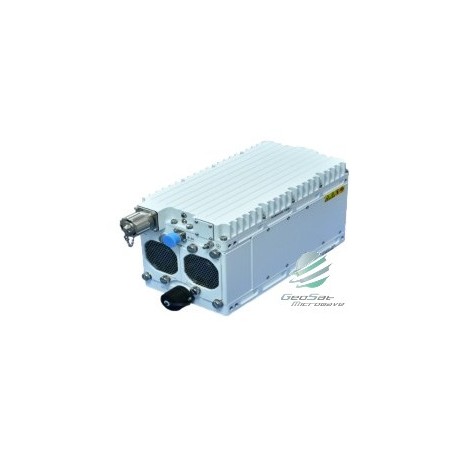

GeoSat 40W Ka-Band (29-31 GHz) BUC Block Up-Converter

Section

Item

Specification

RF Frequency

1 = 29-30 GHz
2 = 29.5-30 GHz
3 = 30-31 GHz
4 = 29-30 & 30-31 GHz

IF Frequency

950-1950 MHz
950-1450 MHz
1000-2000 MHz

External Ref

10 MHz, 0±5 dBm

Outpower

     Rated/Saturated
     PLin¹
     PLin²
     PLin³

46 dBm
45 dBm
44 dBm
43 dBm

IMD3 (3dB from rated)

-25 dBc

Small Signal Gain

70 dBm

Gain Variation

Gain Stability

3 dB p-p max

Gain Adjustment Range

20 dB (Step: 0.1 dB)

Phase Noise

-63 dBc/Hz @100 Hz
-73 dBc/Hz @1 KHz
-83 dBc/Hz @10 KHz
-93 dBc/Hz @100 KHz

Output Spurious

-55 dBc (max)

Notes

PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite)
PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier)
PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier)

Input Power

ACS02E10SL-4P

Power Consumption
    @ PLin³ Output
    @ Rated Output

225 W
350 W

RF Output Connector

WR28-G (Grooved)

RF Output VSWR

1.25:1

IF Input Connector

N-Type Female

IF Input VSWR

1.5:1

Power Connector

ACS02E-14S-7P

M&C Connector

Ethernet, RS485, RS232, and PT02E-12-14P

Alarm Status Indicator

LED (green/red)

Size (inches)
       (mm)

10.2*5.4*4.7
259*136*118

Weight (inches)
           (mm)

12 lbs
5.8 kg

Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 feet ASL
