GeoSat 40W Ka-Band (29-30 GHz) BUC Block Up-Converter View larger

GeoSat 40W Ka-Band (29-30 GHz) BUC Block Up-Converter

GB40KA2930

New

  • Output power - 225 W, 350 W
  • Software selectable sub-band 27.5-31 GHz (single-, dual and tri-band)
  • Independently removable fans without causing service interruption
  • Variable power consumption 350W (@46dBm), 225W (@43dBm)
  • Compact and light weight 12 lbs/5.8 kg
  • Low phase noise (exceeds IESS308/309)
  • Stable linearity to 500 MHz bandwidth
  • Rugged design for extreme environments (-40 to +60oC)

More details

Specifications:

Section

Item

Specification



Power Requirement

RF Frequency

1 = 29-30 GHz
2 = 29.5-30 GHz

IF Frequency

950-1950 MHz
950-1450 MHz
1000-2000 MHz



External Ref

10 MHz, 0±5 dBm

Outpower

     Rated/Saturated
     PLin1
     PLin2
     PLin3


46 dBm
45 dBm
44 dBm
43 dBm

IMD3 (3dB from rated)

-25 dBc

Small Signal Gain

70 dBm

Gain Variation

1 dB p-p / 36 MHz
3 dB p-p / 500 MHz
4 dB p-p / 750 MHz

Gain Stability

3 dB p-p max

Gain Adjustment Range

20 dB (Step: 0.1 dB)



Phase Noise

-63 dBc/Hz @100 Hz
-73 dBc/Hz @1 KHz
-83 dBc/Hz @10 KHz
-93 dBc/Hz @100 KHz

Output Spurious

-55 dBc (max)

Notes

PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite)
PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier)
PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier)

Power Supply

Input Power

ACS02E10SL-4P

Power Consumption
    @ PLin3 Output
    @ Rated Output


225 W
350 W

Interfaces

RF Output Connector

WR28-G (Grooved)

RF Output VSWR

1.25:1

IF Input Connector

N-Type Female

IF Input VSWR

1.5:1

Power Connector

ACS02E-14S-7P

M&C Connector

Ethernet, RS485, RS232, and PT02E-12-14P

Alarm Status Indicator

LED (green/red)

Physical Parameters

Size (inches)
       (mm)

10.2*5.4*4.7
259*136*118

Weight (inches)
           (mm)

12 lbs
5.8 kg



Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 feet ASL



Download the Specification in PDF Format

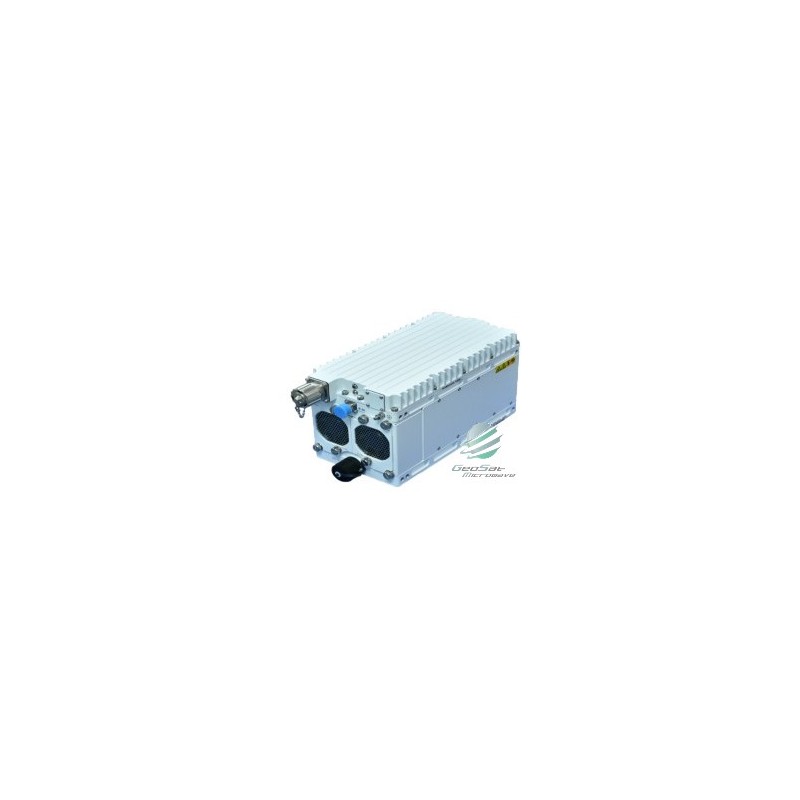

GeoSat 40W Ka-Band BUC Block Up-Converter N-Connector
