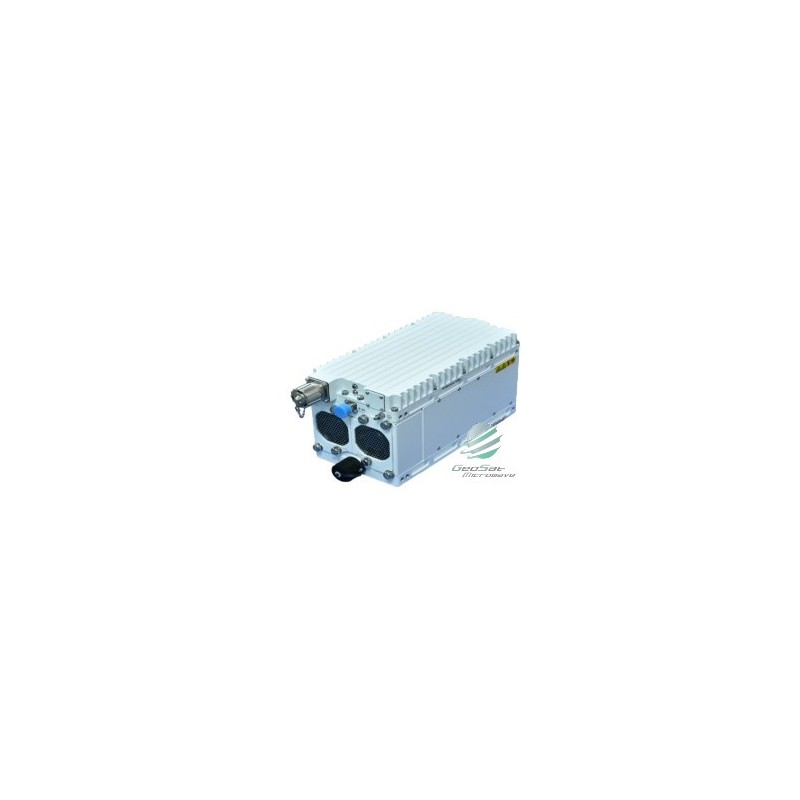

GeoSat 40W Ka-Band (29-30 GHz) BUC Block Up-Converter View larger

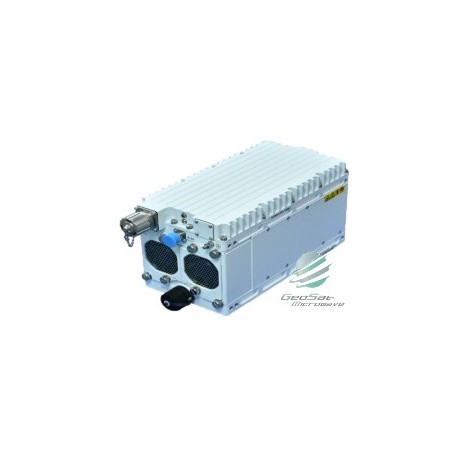

GeoSat 40W Ka-Band (27.5-31 GHz) BUC Block Up-Converter

GB40KA27531

New

Typical VSAT Applications

  • Maritime
  • 5G Backhaul
  • SNG Vehicle
  • Terminals
    • Fixed
    • Portable
    • Transportable

More details

Specifications:

Section

Item

Specification

  Power Requirement RF Frequency 27.5-31Ghz
IF Frequency 950-1950 MHz
950-1450 MHz
1000-2000 MHz
  External Ref 10 MHz, 0±5 dBm
Outpower      Rated/Saturated
     PLin1
     PLin2
     PLin3
47 dBm
46 dBm
45 dBm
44 dBm
IMD3 (3dB from rated) -25 dBc
Small Signal Gain 70 dBm
Gain Variation 1 dB p-p / 36 MHz
3 dB p-p / 500 MHz
4 dB p-p / 750 MHz
Gain Stability 3 dB p-p max
Gain Adjustment Range -20 dB (Step: 0.1 dB)
  Phase Noise -63 dBc/Hz @100 Hz
-73 dBc/Hz @1 KHz
-83 dBc/Hz @10 KHz
-93 dBc/Hz @100 KHz
Output Spurious -55 dBc (max)
Notes PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite)
PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier)
PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier)
Power Supply Input Power ACS02E10SL-4P
Power Consumption
    @ PLin3 Output
    @ Rated Output

225 W
350 W
Interfaces RF Output Connector WR28-G (Grooved)
RF Output VSWR 1.25:1
IF Input Connector N-Type Female
IF Input VSWR 1.5:1
Power Connector AMPHENOL C01610C00600012
M&C Connector RJ45 (Ethernet)
Alarm Status Indicator LED (green/red)
Physical Parameters Size (inches)
       (mm)
10.2*5.4*4.7
259*136*118
Weight (inches)
           (mm)
12 lbs
5.8 kg
  Operating Temperature -40 to +60 ℃
Humidity 0-100% (Condensing)
Altitude 0-10000 feet ASL
Available 3 frequencies per unit:
Frequency Listing
Bank ID Tx Range (GHz) IF Range (MHz) LO (GHz)
1 = 29.0-30.0 950-1950 28.05
2 = 29.5-30.0 950-1450 28.55
3 = 30.0-31.0 950-1950 29.05
4 = Band 1 = 29.0 - 30.0 950 – 1950 28.05
Band 2 = 30.0 - 31.0 950 - 1950 29.05
5 = 27.652 - 28.388 1052 - 1788 26.60
6 = 28.172 - 29.071 972 - 1871 27.20
7 = Band 1 = 27.652 - 28.388 1052 – 1788 26.60
Band 2 = 28.172 - 29.071 972 - 1871 27.20
T = Band 1 = 27.50 - 28.50 950 – 1950 26.55
Band 2 = 28.25 - 29.25 950 – 1950 27.30
Band 3 = 29.00 - 30.00 950 – 1950 28.05

Download the Specification in PDF Format

GeoSat 40W Ka-Band BUC Block Up-Converter N-Connector
