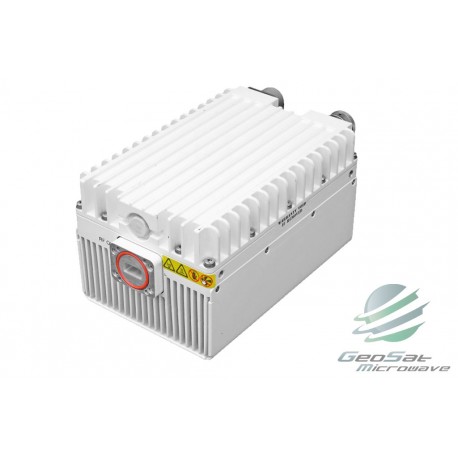

GeoSat 40W Ku-Band (13.75-14.5 GHz) BUC AC Power N-Connector | Model: GBE40KU3 View larger

GeoSat 40W Ku-Band (13.75-14.5 GHz) BUC AC Power N-Connector

GBE40KU3

New

•  Higher reliability from integrated design principle
•  Performing well at wide temperature range
•  Reasonable size and light weight
•  Meet ETSI, FCC Standards

More details

Specifications:

Section

Item

Specification



Power Requirement

RF Frequency

13.75-14.5 GHz

IF Frequency

950-1700 MHz



Input Characteristics

External Reference

10 MHz, 0±5 dBm

Saturated Output Power

46.5 dBm

Rated Output Power

46 dBm

P1dB Output Power

NA

IMD3 @3dB back-off from Rated Output Power

-25 dBc (max)



Output Characteristics

Small Signal Gain

70 dB

Gain Variation

1 dB p-p/ 36 MHz
3 dB p-p/ 500 MHz
4 dB p-p/ 750 MHz

Gain Stability

±1.5 dB

Gain Adjustment Range

20 dB (Step: 0.1 dB)



Transfer Characteristics

Phase Noise (IES-308/309)

-63 dBc/Hz @100 Hz
-73 dBc/Hz @1 KHz
-83 dBc/Hz @10 KHz
-93 dBc/Hz @100 KHz

Output Spurious

-55 dBc (max)

Power Supply

85 to 265 VAC

Power Supply Draw @Rated Output Power

400 W

RF Output Connector

WR75-G (Grooved)

RF Output VSWR

1.25:1

IF Input Connector

N-Type Female

IF Input VSWR

1.5:1

Power Supply Connector

ACS02E-14S-7P

Monitor and Control Connector

PT02E-14-19P RS-485, RS-232 & Ethernet

LED Indicators

LEDs off: Equipment function
properly
Yellow: PLL unlock alarm

Size

206*136*136 mm

Weight

5 Kg



Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 F ASL



Download the Specification in PDF Format
