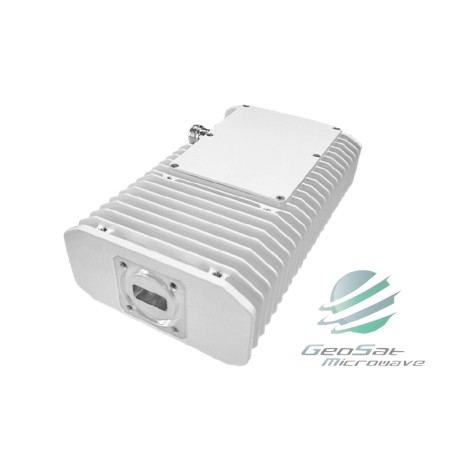

GeoSat 6W Ku-Band (14-14.5 GHz) BUC Block Up-Converter N-Connector View larger

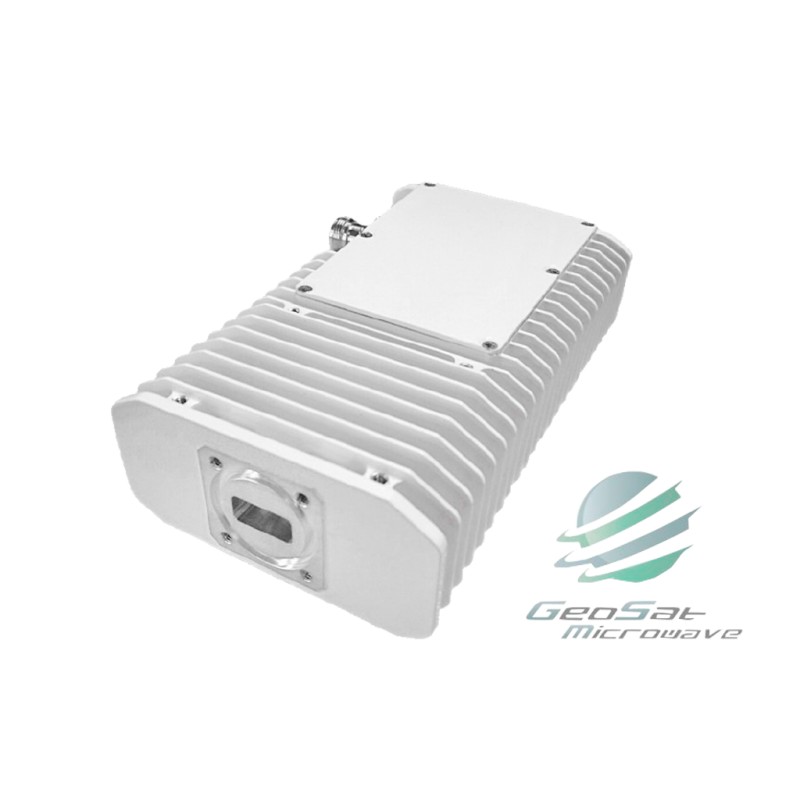

GeoSat 6W Ku-Band (14-14.5 GHz) BUC Block Up-Converter N-Connector

GBE6KUN2

New

• Low power consumption
• Higher reliability from integrated design principle
• Performing well at wide temperature range
• Compact size and light weight
• Meet ETSI, FCC Standards Features
•  3 Year GeoSat Product Warranty

More details

Specifications:

Section

Item

Specification



Power Requirement

RF Frequency

14-14.5 GHz

IF Frequency

950-1450 MHz



Input Characteristics

External Reference

10 MHz, -10 to +5 dBm

Saturated Output Power

≥ 38.5 dBm

Rated Output Power

37.8 dBm

IMD3 @3dB back-off from Rated Output Power

≤ -25 dBc



Output Characteristics

Small Signal Gain

60 dB (nominal) , 57 dB (min)

Gain Variation

1 dB p-p/ 36 MHz
4 dB p-p/ 500 MHz
5 dB p-p/ 750 MHz

Gain Stability

±2 dB

Receive Band Noise Density

≤ -144 dBm/Hz
@10.95-12.75GHz



Transfer Characteristics

Phase Noise (IES-308/309)

≤ -60 dBc/Hz @100 Hz
≤ -70 dBc/Hz @1 KHz
≤ -80 dBc/Hz @10 KHz
≤ -90 dBc/Hz @100 KHz

Output Spurious

≤ -55 dBc

Power Supply

+18 to +36 VDC, via IF port

Power Supply Draw @Rated Output Power

50W

RF Output Connector

WR75-G (Grooved)

RF Output VSWR

1.5:1

IF Input Connector

N-Type Female

IF Input VSWR

2:1

LED Indicators

1 LED: Red means PLL unlock, Green means working normally.

Size

173*100*50 mm

Weight

1 Kg



Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 F ASL



Download the Specification in PDF Format

GeoSat 6W Ku-Band BUC Block Up-Converter N-Connector



Reviews

No customer comments for the moment.

Write a review

GeoSat 6W Ku-Band (14-14.5 GHz) BUC Block Up-Converter N-Connector

GeoSat 6W Ku-Band (14-14.5 GHz) BUC Block Up-Converter N-Connector

• Low power consumption
• Higher reliability from integrated design principle
• Performing well at wide temperature range
• Compact size and light weight
• Meet ETSI, FCC Standards Features
•  3 Year GeoSat Product Warranty

Write a review

Download
