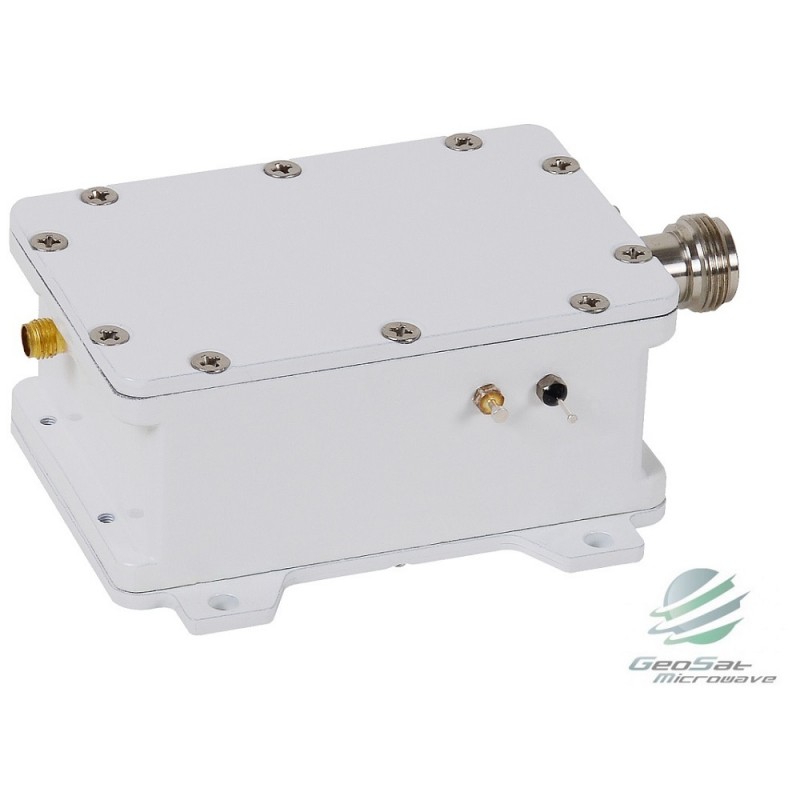

Geosat Block Downconverter Ku-Band 510 (BDC) View larger

Geosat Block Downconverter Ku-Band (12.2 - 12.7 GHz) (BDC)

GBDKU1212 (5, 10, 25)

New

  • Input Freq. - 12.2-12.7 GHz
  • L.O Freq. - 11.25
  • Noise figure - 15 dB max
  • L.O stability at -40 to +60℃ - ±5, 10, 25 KHz max.
  • Input waveguide flange - Feed thru and/or output connector
  • Power Supply - +12 to +24V DC

More details

Specifications:

Parameter Specification
Input Freq. 12.2  - 12.7 GHz
Output Freq. 950 – 1450 MHz
L.O Freq. 11.25 GHz
Noise figure 15 dB max
Conversion gain at -40 to +60 20 dB typ. (17dB min. 23dB max.)
Gain flatness 4 dBp-p max.
Gain flatness at -40 to +60 5 dBp-p max.
Gain ripple at per 27MHz, -30 to +60 1 dBp-p max.
L.O stability at -40 to +60 ±5, 10, 25 KHz max.
Image rejection 40 dBc min.
Phase noise -70 dBc/Hz (@1KHz)
-80 dBc/Hz (@10KHz)
-95 dBc/Hz (@100KHz)
Output P1dB +5 dBm min.
Input VSWR 2.0: 1 max
Output VSWR 2.0: 1 max
Input connector SMA-type female (option)
Output connector F, N, SMA-type female (option)
Power supply +12 to +24V DC
Power supply connector Feed thru and/or output connector
Required current 300 mA max.
Operating temperature -40 to +60
Waterproof IP 67
Dimension (exclude connector) 89.6 x 78.0 x 40.0 mm
Weight 400 g


Download the Specification in PDF Format

Geosat Block Downconverter Ku-Band (BDC) GBDKU1212 Specsheet
