GeoSat 30W Ku-Band (13.75-14.5 GHz) BUC Block Up-Converter | Model GB30EKU2N View larger

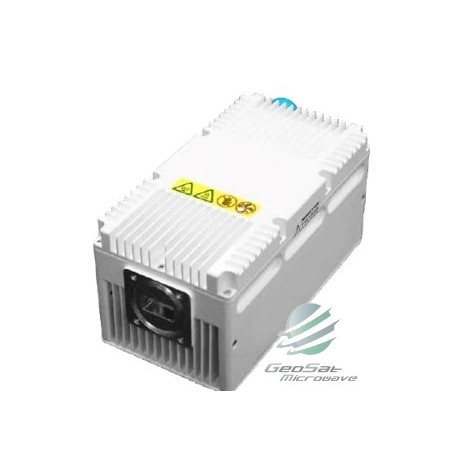

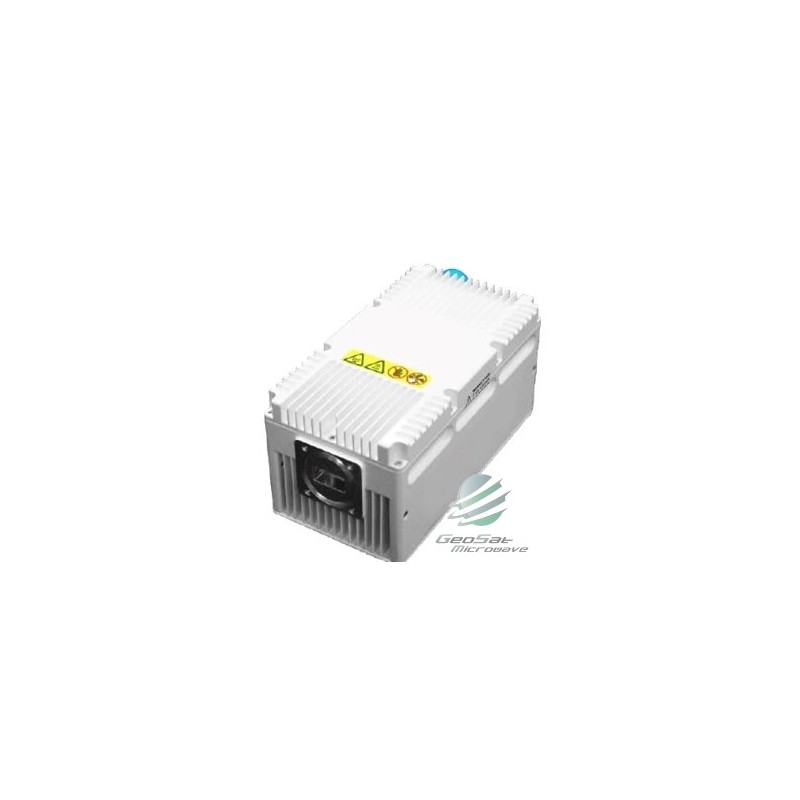

GeoSat 30W Ku-Band (13.75-14.5 GHz) BUC Block Up-Converter

GB30EKU2N

New

  • Highly integrated RF technologies (RFIC and GaN)
  • Designed for high volume production
  • Linearity optimized for high order modulation and high data rate
  • Strict quality control processes resulting in <0.25% field failure rates

More details

Specifications:

KEY SPECIFICATIONS

Section

Item

Specification

RF Specifications

RF Frequency

13.75-14.50 GHz

IF Frequency

950-1700 MHz

External Reference

10 MHz, 0±5 dBm

Saturated Output Power

46 dBm

PLin1 (-26 dBc regrowth, 1.5 SR)

PLin2 (-30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier)

PLin3 (<-25 dBc IMD3 (MIL-STD-188-164B, two-carrier))

45 dBm


44 dBm

43 dBm

IMD3 (two carriers) @3 dB

-25 dBc

Small Signal Gain

No M&C (fixed)

70dB

With M&C (1dB steps)

50-70dB

Gain Variation

1 dB p-p/ 36 MHz

3 dB p-p/ 500 MHz

4 dB p-p/ 750 MHz

Gain Stability

3 dB p-p

Phase Noise

-60 dBc/Hz @100 Hz

-75 dBc/Hz @1 KHz

-85 dBc/Hz @10 KHz

-95 dBc/Hz @100 KHz

Output Spurious

≤ -55 dBc

Power Supply

Input Power

+36 to +56 VDC

Power Consumption

   @ PLin1 Output

135 W

Output Power

30W P1dB

Interface

RF Output Connector

WR75-G (Grooved)

IF Input Connector

N-Type Female or F-Type Female

IF Input VSWR

1.5:1

Power

IFL or Separate DC Connector

LED Alarm Indicator

Green = normal

Red on = PLL alarm

Red flashing = Temp alarm

Physical Parameters

Size        (inches)

              (mm)

5.9*3.03*2.99

150*80*76

Weight   (lbs)

             (kg)

2.9

1.3

Operating Temperature

-40 to +60

Physical Parameters

Humidity

0-100% (Condensing)

Altitude

0-10000 F ASL



Download the Specification in PDF Format
