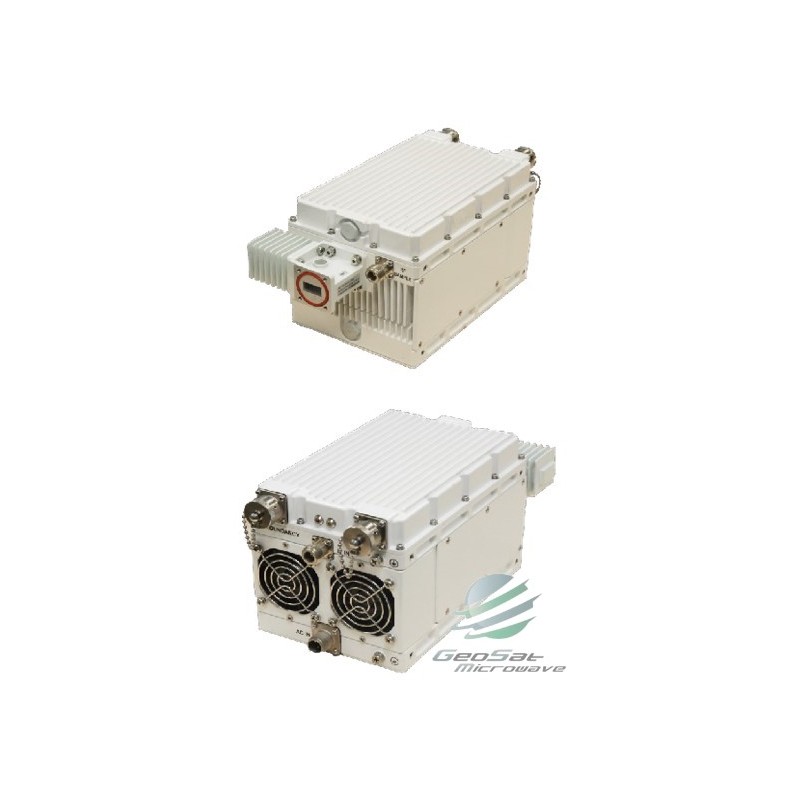

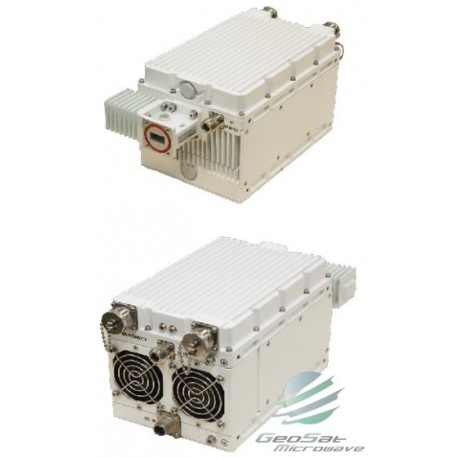

Geosat 60W Ku-Band Block Up-Converter Extended (BUC) View larger

Geosat 60W Ku-Band (13.75 -14.5 GHz) Block Up-Converter Extended (BUC)

GB1314KU60X

New

  • Output power - 60W
  • Input Freq. - 13.75 -14.5 GHz
  • Gain Stability - 3 dB
  • RF Output Connector - WR75-G (Grooved)
  • Power supply - 85 to 265 VAC

More details

Specifications:

Section

Item

Specification

RF Specifications

RF Frequency

13.75-14.50 GHz

IF Frequency

950-1450 MHz

Input Characteristics

External Reference

10 MHz, 0 ± 5 dBm

Output Power

60W

Saturated

48.0 dBm typ.



Plin1

47 dBm

Output Characteristics

Plin2

46 dBm

Plin3

45 dBm

IMD3 (two carriers) @3 dB back-off from Rated Output Power

-25 dBc max.

Small Signal Gain

70 dB



Gain Adjustment Range

20 dB (Step: 0.1 dB)



Gain Variation

1 dB p-p/ 36 MHz

3 dB p-p/ 500 MHz

4 dB p-p/ 750 MHz

Transfer Characteristics

Gain Stability

3 dB p-p max.

Phase Noise

-63 dBc/Hz @100 Hz,

-73 dBc/Hz @1 KHz,

-83 dBc/Hz @10 KHz,

-93 dBc/Hz @100 KHz

Output Spurious

-60 dBc max.

Power Supply

Power Supply

85 ~ 265 VAC, 47 ~ 63 Hz



Power Supply Draw

380W typ.



@Prated

@47.8 dBm

Interfaces

Painting

White Color

Operating Temperature

RF Output Connector

WR75-G (Grooved)



RF Output VSWR

1.25:1

IF Input Connector

N-Type Female



IF Input VSWR

1.5:1



Power Supply

ACS02E10SL-3P



M&C Connector

PT02E-12-14P,

RS-232 & RS-485 & Ethernet



Redundancy Connector

PT02E-12-14S



RF Sampling Connector

N-Type



LED Indicator (Two LEDs)

LED OFF: Normal Yellow ON: PLL Alarm Yellow Flash: Fan Alarm Red ON: HPA Alarm

Red Flash: Temp. Alarm

Physical Parameters



Size

206*136*136 mm

8.1*5.3*5.3 Inch



Weight

4.8 kg

10.6 lbs



Operating Temperature

-40 to +60 ℃



Humidity

0-100% (Condensing)



Altitude

0-10000 F ASL

Download the Specification in PDF Format
