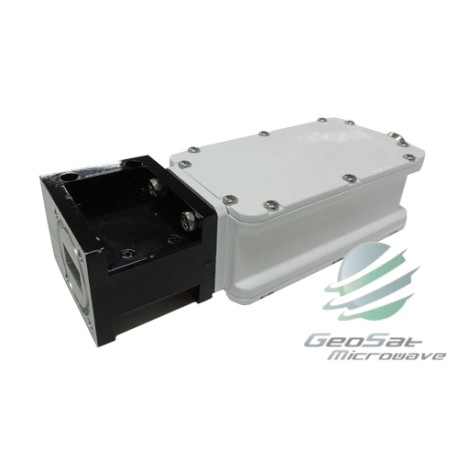

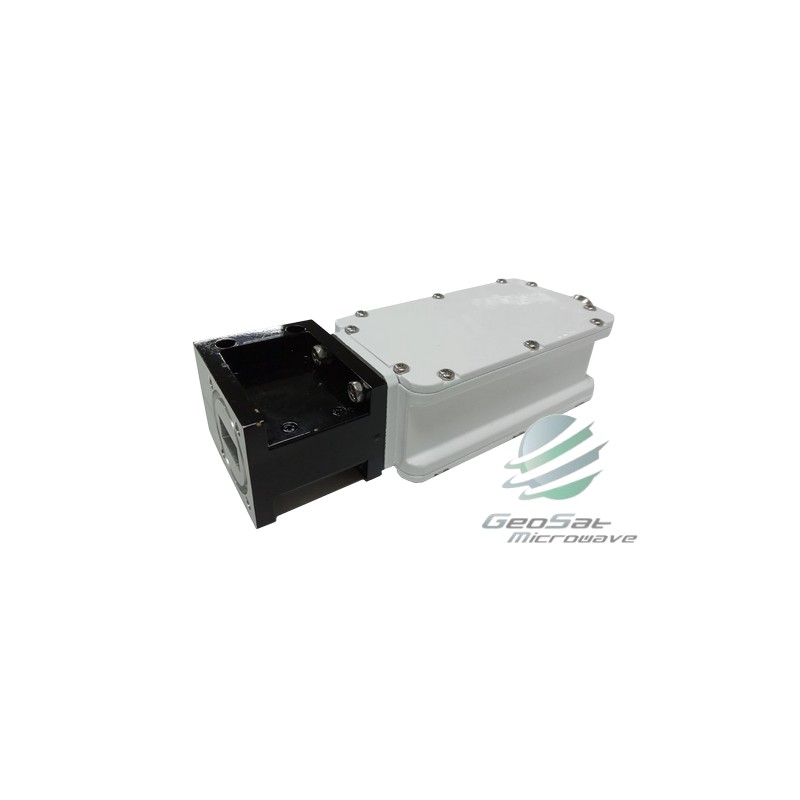

Geosat Low Noise Block Ku-Band QUAD PLL+ISO External (LNB)  	View larger

Geosat Low Noise Block Ku-Band QUAD PLL+ISO External (LNB)

GLKU4LOIE

New

  • Input Freq. - 10.7  - 12.75 GHz
  • Noise temperature - 1.0 dB max.
  • L.O stability at -40 to +60℃ - depends on ext. ref.
  • Input waveguide flange - WR-75
  • Power Supply - +12 to +24V DC

More details

Specifications:

Parameter Parameter Specification

Band 1

Input (GHz)

10.7  - 11.7

Output (MHz)

950 - 1950



L.O (GHz), Switching

9.75 @13 VDC & 22KHz off

Band 2

Input (GHz)

10.95 - 11.7

Output (MHz)

950 - 1700



L.O (GHz), Switching

10.0 @13 VDC & 22KHz on

Band 3

Input (GHz)

11.7  - 12.75

Output (MHz)

950 - 2000

L.O (GHz), Switching

10.75@18 VDC & 22HKz off

Band 4

Input (GHz)

12.25 - 12.75

Output (MHz)

950 - 1450

L.O (GHz), Switching

11.3 @18 VDC & 22KHz on

Specification

Noise figure (@+25℃)

1.0 dB max.

Conversion gain

60 dB typ. (55dB min, 65dB max)



Gain flatness

5 dBp-p max.



Gain flatness at -40 to +60℃

6 dBp-p max.



Gain ripple at per 36MHz, -40 to +60℃

1 dBp-p max.



L.O stability (over temp.)

depends on ext. ref.



Image rejection

40 dBc min. @ Band 1, 2

35 dBc min. @ Band 3

15 dBc min. @ Band 4



Phase noise

-70 dBc/Hz (@1KHz)

-80 dBc/Hz (@10KHz)

-95 dBc/Hz (@100KHz



Output P1dB

+5 dBm min.



Ext. ref. input freq. & power

10 MHz, -5 to +5 dBm



Ext. ref. input port

IF output connector

Input VSWR

1.3 : 1 max. with W/G isolator



Output VSWR

2.5 : 1 max



Input waveguide flange

WR- 75



Output connector

F, N-type female (option)



Power supply

+12 to +24V DC

Operating temperature

-40 to +60℃

Waterproof

IP 67



Dimension (exclude connector)

60.0 x 41.6 x 111.5 mm



Weight

400 g

IF output connector

F-Type, N-Type female

Download the Specification in PDF Format

Low Noise Block Ku-Band QUAD PLL+ISO External (LNB)
