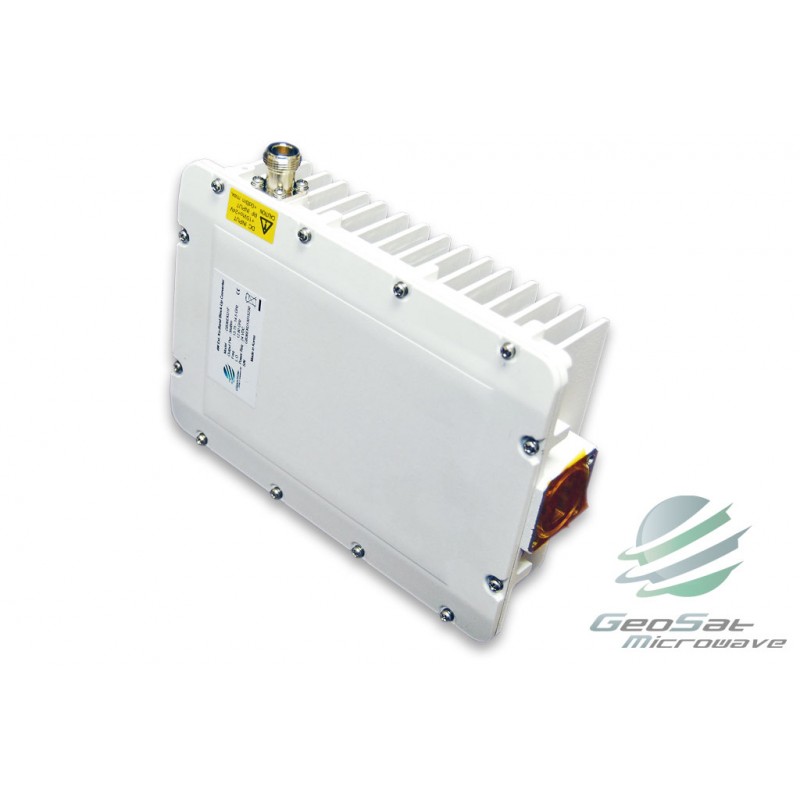

GeoSat 4W Ku-Band Extended (13.75GHz ~ 14.5GHz) BUC Block Up-Converter
GB36EKU1N
New
• Min. 36dBm Output P1dB over Temp.
• Light Weight & Small Size
• Leak Protected and 100% Screened
• RoHS Compliant
• 3 Year GeoSat Product Warranty
Specifications:
| Section | Item | Specification | ||
| Power Requirement | Voltage | +15 ~ +24V DC | ||
| Power Consumption | 48W max | |||
| Input Characteristics | Frequency Range | 950MHz ~ 1700MHz | ||
| Impedance | 75 / 50 Ohms | |||
| Return Loss (VSWR) | 2:1 | |||
| IF Connector | F / N-Type (Female) | |||
| Output Characteristics | Frequency Range | 13.75GHz ~ 14.5GHz | ||
| Power @ 1dB Comp. | Min. 36dBm over temp. | |||
| Return Loss (VSWR) | 2:1 | |||
| RF Connector | WR 75 | |||
| Transfer Characteristics | Frequency Sense | Non Inverted | ||
| Local Frequency | 12.8GHz | |||
| External Reference Frequency | 10MHz, Sine wave | |||
| Gain | 54 dB typ. @ 25 ℃ | |||
| Phase Noise ▼ | Reference Phase Noise @ -/+ 5dBm Input |
|||
| 100Hz | < -60dBc / Hz | < -135dBc / Hz | ||
| 1kHz | < -70dBc / Hz | < -140dBc / Hz | ||
| 10kHz | < -80dBc / Hz | < -143dBc / Hz | ||
| 100kHz | < -90dBc / Hz | |||
| Rx Band Noise Density | <-156dBm /Hz | |||
| Worst Case Lo Product | <-45dBm | |||
| Mute | HPA is turned off in case of LO unlocked. | |||
| Mechanical | Dimension (mm) | 202.6 x 142.5 x 57.0 | ||
| Weight | <1.7kg | |||
| Painting | White Color | |||
| Operating Temperature | - 40℃ ~ + 55℃ | |||
| - | ||||
| Download the Specification in PDF Format | ||
 |
4W Ku-Band Extended Block Up-Converter (BUC) GB36EKU1N Specsheet |
|
