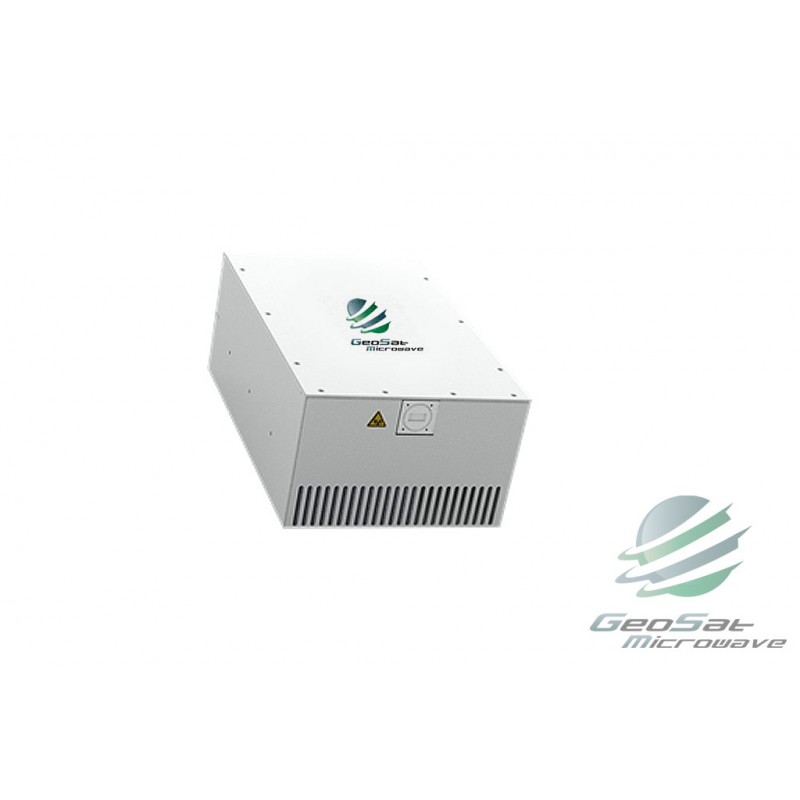

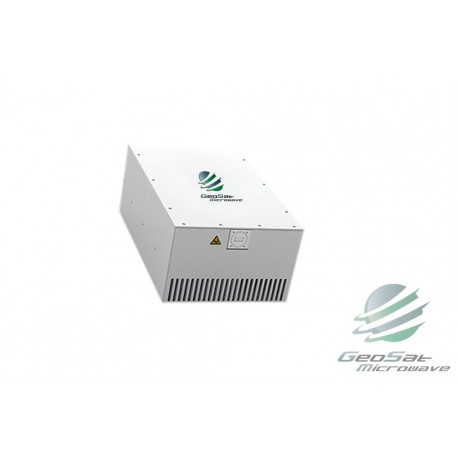

GeoSat 200W Ku-Band (14.00/13.75 ~ 14.5GHz) GaN Block Up-Converter (BUC) / SSPA | Model: TPB-KXB0530-HMS0 View larger

GeoSat 200W Ku-Band (14.00/13.75 ~ 14.5GHz) GaN Block Up-Converter (BUC) / SSPA

GBS200KU

New

• Extremely high power density - up to 200W Psat
• Powered by GaN Technology
• Phase noise 8-10dB better than IESS308/309
• Spurious below -60dB
• RF Overdrive Protection
• Switchable LO option - Standard / Extended
• Input and Output True RMS Power Detection
• Redundant Ready - no external controller required
• Antenna Mounting kit optional
•  3 Year GeoSat Product Warranty

More details

Specifications:

  Section Item Specification
  Power Requirement Voltage 90-265VAC 50-60Hz auto-ranging PFC
Power Consumption @ Rated Power 1150W
Power Consumption @ 3dB Backoff 800W
  RF Characteristics RF Frequency Range 14-14.5GHz / 13.75-14.5GHz
IF Frequency Range 950-1450MHz / 950-1700MHz
LO Frequency 13.05GHz / 12.8GHz
Saturated Power 53dBm typ
Linear Power 49dBm min
  Interface: IF Input N-Female
Reference Input WR75 grooved
RF Sample N-type female
M&C -Serial, Analog and Ethernet MS3112E14-19S
Redundant Interface MS3112E14-19P
AC Power In MS3112E12-3P
  External Reference: Frequency 10MHz multiplexed with IF In
External Ref. Required Phase Noise -130dBc/Hz @ 100Hz -140dBc/Hz @ 1kHz
-150dBc/Hz @ 10kHz -155dBc/Hz @ 100 kHz
  Transfer Characteristics Type Single Conversion; non-inverting
Frequency Sense Non-inversion
Gain 75dB min, 77dB typ
Gain Flatness ▼
Typical +/-1dB
Over RF Output band: +/-1.5dB
Over any 40 MHz segment +/-0.5dB max
Gain Adjustment Range 20dB min dynamic range
Gain Stability Over Input Power 3dB typ 4dB max from 10dB back off to rated power
Gain Stability Over Temperature +/-1.5dB over full temperature range
Output Spurious ▼
-60 dBc Non-Signal Related
-55 dBc Signal Related
Linearity: 2 tone IMD Spectral Re-growth -24dBc at P linear / -30dBc for QPSK at 1.5x symbol rate at Plinear+1dB
Up-Converter Phase Noise ▼
100Hz  -68 dBc/Hz max.
1kHz  -80 dBc/Hz max.
10kHz  -90 dBc/Hz max.
100kHz  -95 dBc/Hz max.
1mHz -115 dBc/Hz max.
Noise Power Density ▼
-85dBm/Hz maxTransmit Band
-148dBm/Hz max Receive Band
  Environmental Operating Temperature Range -40°C to +55°C
Humidity Up to 100% condensing
  Physical Size (LxWxH): 15.5 "x10"x6.3"
Weight 28lbs
Cooling Forced Air




Download the Specification in PDF Format

200W Ku-Band GaN Block Up-Converter (BUC) / GBS200KU Specsheet
