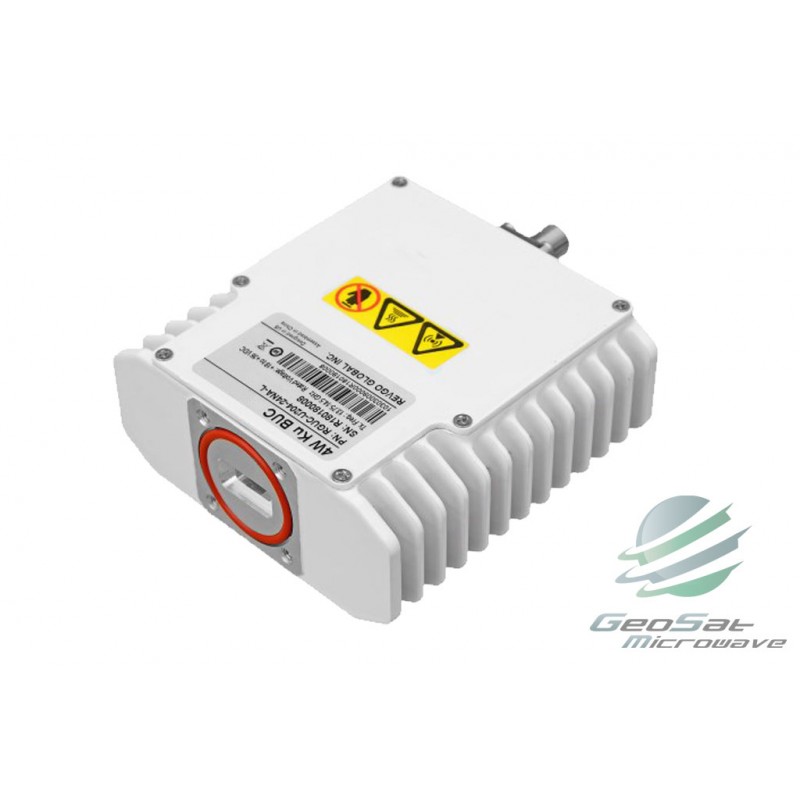

GeoSat 4W Ku-Band (14.0 ~ 14.5GHz) BUC Block Up-Converter N-Connector | Model: GBS4KUN View larger

GeoSat 4W Ku-Band (14.0 ~ 14.5GHz) BUC Block Up-Converter N-Connector

GBS4KUN

New

• Low power consumption
• Higher reliability from integrated design principle
• Performing well at wide temperature range
• Compact size and light weight
• Meet ETSI, FCC Standards Features
•  3 Year GeoSat Product Warranty

More details

Specifications:

Section

Item

Specification



Power Requirement

RF Frequency

14-14.5 GHz

IF Frequency

950-1450 MHz



Input Characteristics

External Reference

10 MHz, 0±5 dBm

Saturated Output Power

≥ 36.5 dBm

Rated Output Power

36 dBm

IMD3 @3dB back-off from Rated Output Power

≤ -25 dBc



Output Characteristics

Small Signal Gain

57 dB

Gain Variation

1 dB p-p/ 36 MHz
4 dB p-p/ 500 MHz
5 dB p-p/ 750 MHz

Gain Stability

±2 dB

Receive Band Noise Density

≤ -144 dBm/Hz
@10.95-12.75GHz



Transfer Characteristics

Phase Noise (IES-308/309)

≤ -60 dBc/Hz @100 Hz
≤ -70 dBc/Hz @1 KHz
≤ -80 dBc/Hz @10 KHz
≤ -90 dBc/Hz @100 KHz

Output Spurious

≤ -55 dBc

Power Supply

+18 to +36 VDC, via IF port

Power Supply Draw @Rated Output Power

30W

RF Output Connector

WR75-G (Grooved)

RF Output VSWR

2:1

IF Input Connector

N-Type Female

IF Input VSWR

2:1

Size

97*96.5*42 mm

Weight

0.5 Kg



Operating Temperature

-40 to +60 ℃

Humidity

0-100% (Condensing)

Altitude

0-10000 F ASL



Download the Specification in PDF Format
