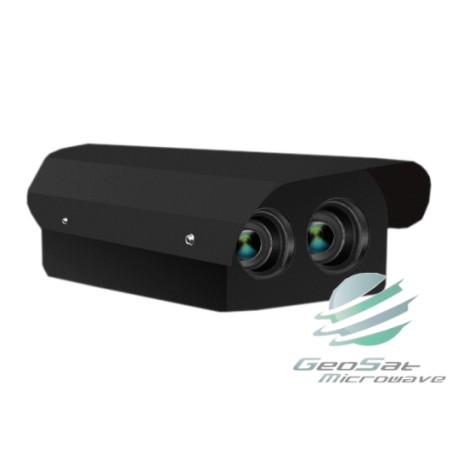

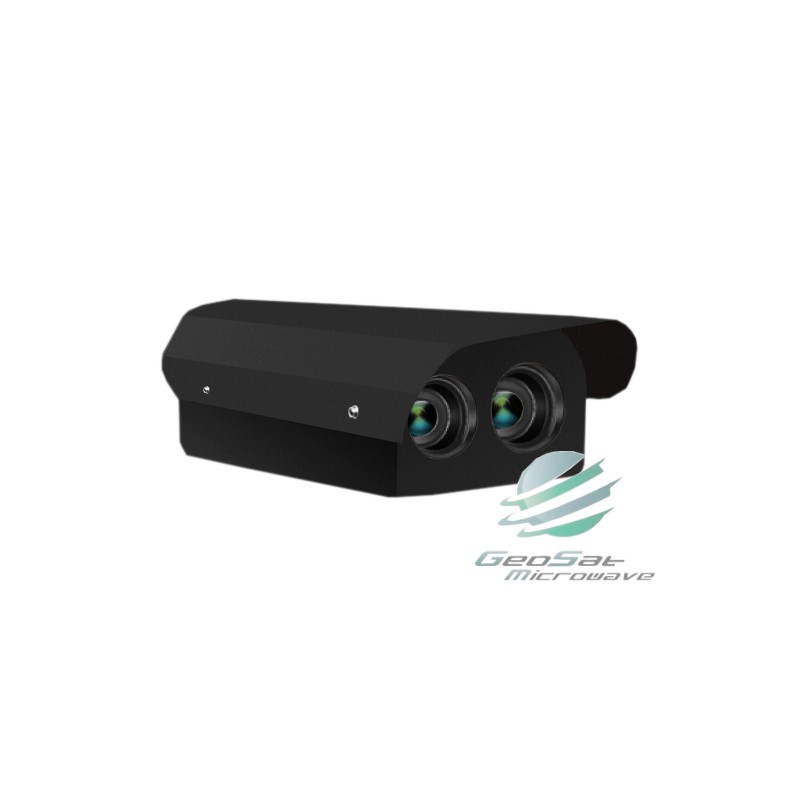

Geosat TempAlert Saver
TempAlert Saver
New
- Non-contact Distance: Up to 6M.
- Thermal Imager temperature Accurate Error: Only ±0.3℃
- Millisecond detection speed, fast though
- Can measure up to 6 people at a time
- Face recognition, mask recognition customization
Specifications:
|
Visible light |
|||
|
|
Main Chip |
Hi3516DV300 |
|
|
|
Sensor |
IMX327 |
|
|
|
Lens |
4mm |
|
|
|
Resolution |
1080P,640P,320P |
|
|
|
Scanning mode |
Progressive scanning |
|
|
|
Min illumination |
0.01Lux |
|
|
|
Wired |
Wired 10Mbps/100Mbps RJ45 |
|
|
Thermal imaging |
|||
|
|
Type of detector |
uncooled vanadium oxide focal plane detector |
|
|
|
Wavelength range |
384 x 288 |
|
|
|
Resolution |
8 μm ~ 14 μm |
|
|
|
Viewing angle |
50Hz |
|
|
|
Pixel dimensions |
≤ 50mk @ 25°C, f × 1.0 |
|
|
|
Frame rate |
13 mm, non thermal lens |
|
|
|
Temperature range |
30℃~45℃ |
|
|
|
Temperature measurement accuracy |
±0.3℃ |
|
|
|
Impassivity Black background temperature correction |
Automatic calibration based on input emissivity and background temperature |
|
|
|
Atmospheric transmittance correction |
Automatic calculation of atmospheric transmittance and correction of temperature based on meteorological parameters |
|
|
|
Multiple temperature measurements |
Support 4-6 simultaneous temperature measurement |
|
|
|
Abnormal temperature alarm |
Support 37.3°C over temperature automatic alarm |
|
|
Tractor parameter |
|||
|
|
Working temperature |
-10℃~50℃ |
|
|
|
Working humidity |
5~95%，No condensation |
|
|
|
Machine size |
332mm*185mm*105mm |
|
|
|
Box Size |
480mm*280mm*200mm |
|
|
|
Weight |
2300g |
|
|
Download the Specification in PDF Format |
||
 |
Geosat TempAlert Supreme Specsheet |
|
| |
||
