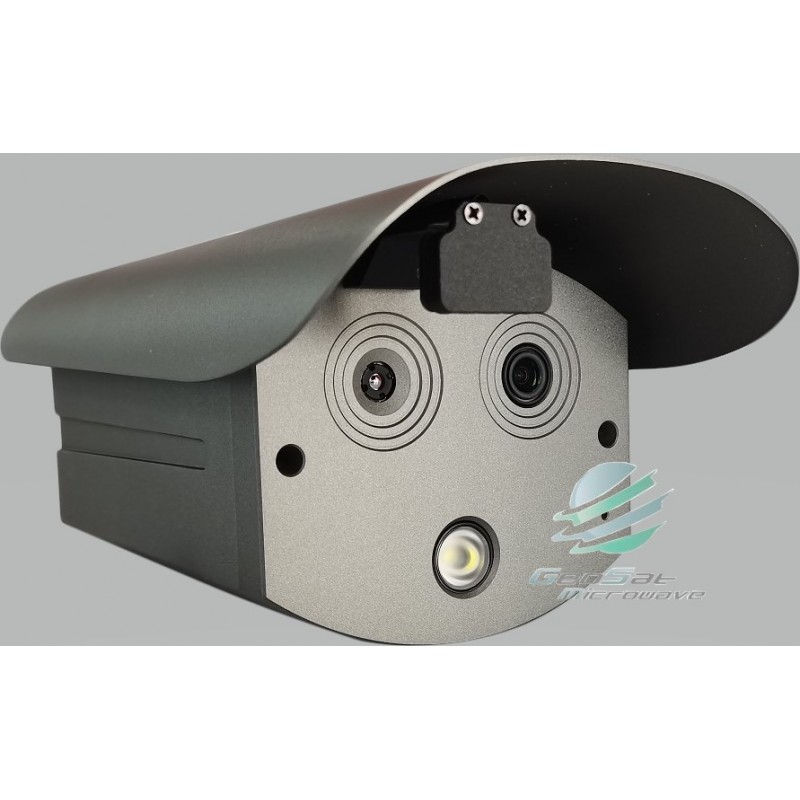

Thermal camera with Blackbody and HDMI Output All in one View larger

Thermal camera with Blackbody and HDMI Output All in one

TempAlert Advanced

New

  • Thermal imaging temperature measurement module with pixels up to 256x192
  • Pixel Pitch:12μm, thermal sensitivity (NETD):≤60mK(@25℃,F#=1.1)
  • Non-contact temperature measurement, accuracy: ±0.3℃ (target temperature 30℃~50℃)

More details

Specifications:

Specification 2MP Thermal Network Camera with Blackbody (2 in 1)
Thermal Sensor type Silicon oxide uncooled infrared focal plane detector
Thermal Effective Pixels :256x192, Pixel Pitch: 12μm
Lens Focal Distance :3.2mm, Angle of view :56°x 42
Detection accuracy ±0.3℃, Target Temperature: 35℃~38℃
Detection Distance 1m to 4m
Blackbody Effective Radiating Area 15mm*30mm
Range of Temperature 30℃-50℃
Temperature Resolution 0.01℃
Stabilization Precision ≤0.1℃
Visible Image Sensor 1/2.8inch CMOS Visible Effective Pixels:2MP
Min.Illumination 0.05Lux@F1.2( Color Mode Or RGB ),0.01Lux@F1.2( Black and white mode )
WDR ≥80dB
SNR ( Signal to Noise Ratio) ≥46dB(AGC OFF)
Focal Length 4mm
Field of view Horizontal view angle: 84°, Vertical view: 45°
AI Face Capture Built in deep learning AI algorithm, support simultaneous detecting of 20 faces, face detecting and capturing.
Abnormal Temperature Alarm Abnormal body temperature voice alarm (default alarm threshold is 37.3 ℃)
Hardware Interfaces Power Supply DC12V ,2A
Network Interface 1x channel 10 / 100BaseT Ethernet,1x RJ45 interface
Alarm Interface Support switch alarm signal output, linkage external sound and light alarm
Audio and Video Interface 1x HDMI Output
Storage The storage has built-in EMMC storage, which can store up to 100000 temperature measurement records
General Operating Temperature -10℃~35℃
Operating Humidity 0%-90% RH( non-condensing )
Protection Level IP64
Power Supply 12V DC
Power Consumption ≤6W
Dimensions 235mm*136mm*92mm
Weight <1.2kg

Download the Specification in PDF Format

Thermal camera with Blackbody and HDMI Output All in one Specsheet
