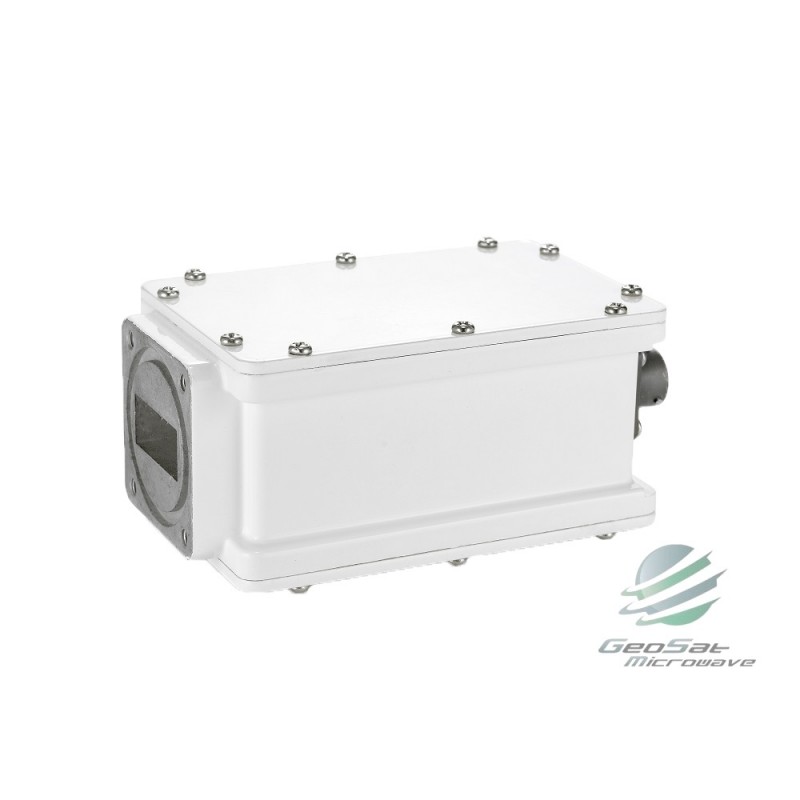

Geosat Low Noise Amplifiers X-Band (7.25 – 7.75 GHz) 100 (LNA)
GLAX7277
New
- Input Freq. - 7.25 – 7.75 GHz
- Input waveguide flange - MS3112E10-6P (option)
- Power Supply - +12 to +24V DC
Specifications:
| Parameter | Specification | |
| Frequency range | 7.25 – 7.75 GHz | |
| Noise figure | 0.8 dB max | |
| Conversion gain at -40 to +60℃ | 55 dB typ. (50dB min, 60dB max.). | |
| Gain flatness | 4 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 4 dBp-p max. | |
| Gain ripple at per 36MHz, -30 to +60℃ | 1 dBp-p max. | |
| Output P1dB | +10 dBm min. | |
| Input VSWR | 2.0: 1 max | |
| Output VSWR | 2.0: 1 max | |
| Input waveguide flange | WR-112 | |
| Input connector | N, SMA type female (option) | |
| Output connector | F, N, SMA-type female (option) | |
| Power connector | MS3112E10-6P (option) | |
| Power supply | +12 to +24V DC | |
| Required current | 250 mA max | |
| Operating temperature | -40 to +60℃ | |
| Waterproof | IP 67 | |
| Dimension (exclude connector) | 100.0 x 45.0 x 22.6 mm | |
| Weight | 250 g | |
|
Download the Specification in PDF Format |
||
 |
Low Noise Amplifiers X-Band (LNA) GLAX7277 Specsheet |
|
