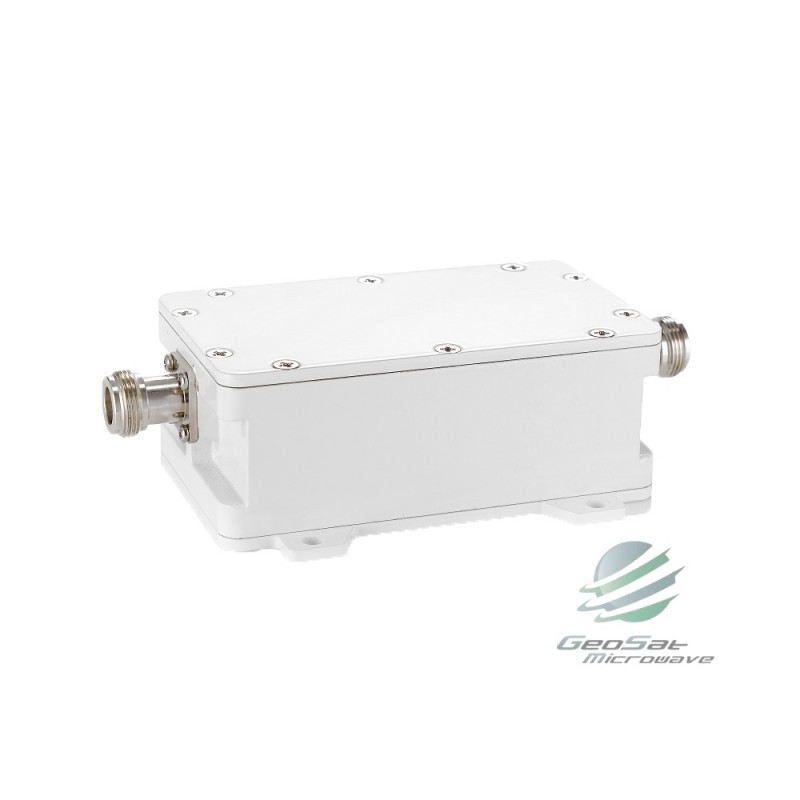

Geosat Block Downconverter X-Band 100 (BDC) View larger

Geosat Block Downconverter X-Band (7.25 – 7.75 GHz) (BDC)

GBDX727710, 25

New

  • Input Freq. - 7.25 – 7.75 GHz
  • L.O Freq. - 6.3
  • Noise figure - 13 dB max
  • L.O stability at -40 to +60℃ - ±25, 50 KHz max.
  • Input waveguide flange - Feed thru and/or output connector
  • Power Supply - +12 to +24V DC

More details

Specifications:

Parameter Specification
Input Freq. 7.25 – 7.75 GHz
Output Freq. 950  - 1450MHz
L.O Freq. 6.3 GHz
Noise figure 13 dB max
Conversion gain at -40 to +60 30 dB typ. (27dB min. 33dB max.)
Gain flatness 4 dBp-p max.
Gain flatness at -40 to +60 5 dBp-p max.
Gain ripple at per 27MHz, -30 to +60 1 dBp-p max.
L.O stability at -40 to +60 ±10, 25 KHz max.
Image rejection 40 dBc min.
Phase noise -70 dBc/Hz (@1KHz)
-80 dBc/Hz (@10KHz)
-95 dBc/Hz (@100KHz)
Output P1dB +5 dBm min.
Input VSWR 2.2: 1 max
Output VSWR 2.2: 1 max
Input connector SMA, N-type female (option)
Output connector F, N, SMA-type female (option)
Power supply +12 to +24V DC
Power supply connector Feed thru and/or output connector
Required current 300 mA max.
Operating temperature -40 to +60
Waterproof IP 67
Dimension (exclude connector) 108.0 x 79.5 x 42.0 mm
Weight 550 g


Download the Specification in PDF Format

Geosat Block Downconverter X-Band (BDC) GBDX7277 Specsheet
