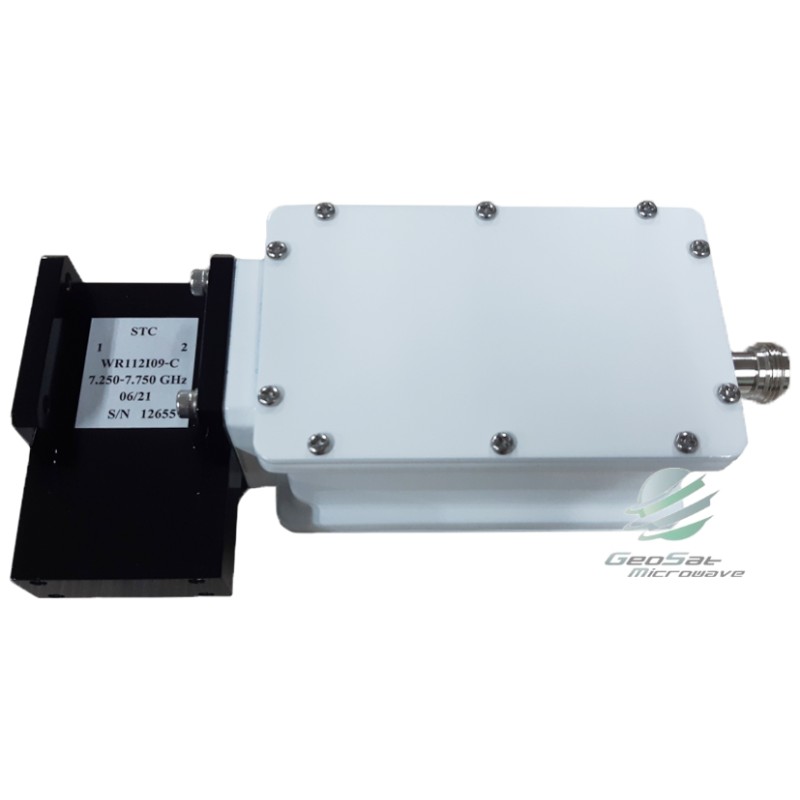

Geosat Low Noise Block X-Band (7.25 – 7.75 GHz) Ext. Ref. PLL (LNB) with W/G Isolator
GLBX100XE
New
- Input Freq. - 7.25 – 7.75 GHz
- Local Frequency - 5.15 GHz
- Noise Figure - depends on ext. ref.
- L.O stability at -40 to +60℃ - depends on ext. ref.
- Input waveguide flange - WR-112
- Power Supply - +12 to +24V DC
Specifications:
| Parameter | Specification | |
| Input Freq.(GHz) | 7.25 – 7.75 | |
| Output Freq.(MHz) | 950 – 1450 | |
| LO (GHz) | 6.3 | |
| Noise figure | Ext. Reference | |
| Conversion gain at -40 to +60℃ | 55 dB typ. (50dB min. 62dB max.) | |
| Gain flatness | 4 dBp-p max | |
| Gain flatness at -40 to +60℃ | 5 dBp-p max | |
| Gain ripple at per 27MHz, -40 to +60℃ | 1 dBp-p max | |
| L.O stability at -40 to +60℃ | depends on ext. ref. | |
| Image rejection | 40 dBc min | |
| Phase noise | -75 dBc/Hz @1KHz | |
| -85 dBc/Hz @10KHz | ||
| -95 dBc/Hz @100KHz | ||
| Output P1dB | +5 dBm min. | |
| Ext. ref. input freq. & power | 10 MHz, -5 to +5 dBm | |
| Ext. ref. input port | IF output connector | |
| Input VSWR | 1.5 : 1 max. (with W/G isolator) | |
| Output VSWR | 2.5 : 1 max. | |
| Input waveguide flange | WR-112 | |
| Output connector | F, N-Type female (option) | |
| Power supply | +12 to +24V DC | |
| Required current | 300 mA max | |
| Operating temperature | -40 to +60℃ | |
| Waterproof | IP 67 | |
| Dimension (exclude connector) | 70.0 x 59.0 x 118.0 mm | |
| Weight | 620 g | |
|
Download the Specification in PDF Format |
||
 |
Low Noise Block X-Band Extended GLBX100XE (LNB) with W/G Isolator Specsheet |
|
|
|
||
