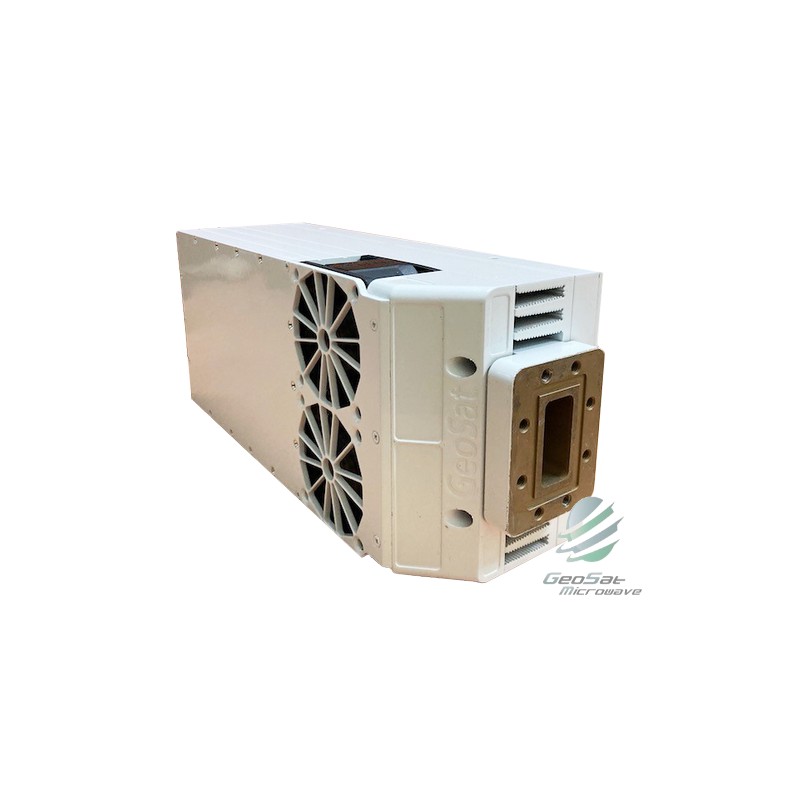

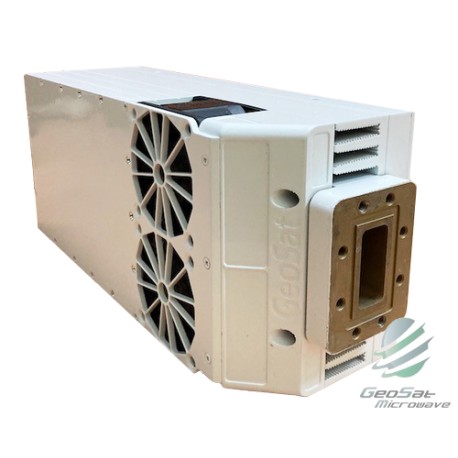

Geosat 20W X-band BUC (7.9-8.4 GHz)

OUTPUT Frequency Range

7900 - 8400 MHz

INPUT Frequency Range

950 - 1450 MHz

LO Frequency (M&C switching)

6950  MHz

RF Output  Power @ P1dB

43 dBm

Gain

65 dB

Gain flatness

± 2.0 dB

Spurious

< -50 dB

IF Input Interface

50 ohm – N type

RF Output Flange

CPR112

Phase Noise

< -60 dBc/Hz at 100 Hz,

< -75 dBc/Hz at 1 kHz

< -85 dBc/Hz at 10 kHz

< -95 dBc/Hz > at 100 kHz

External Reference

10 MHz sine wave
