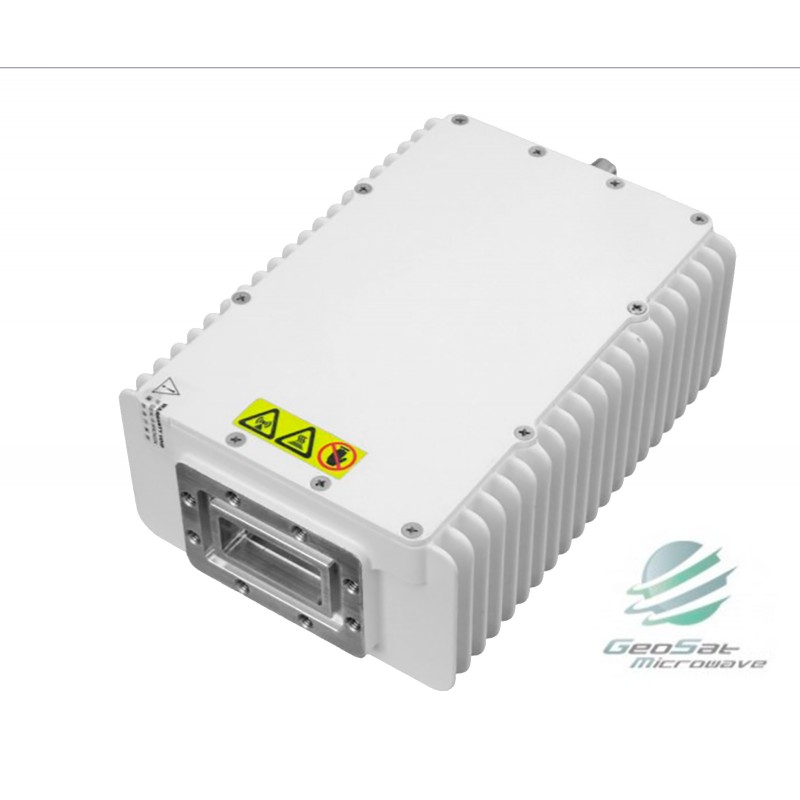

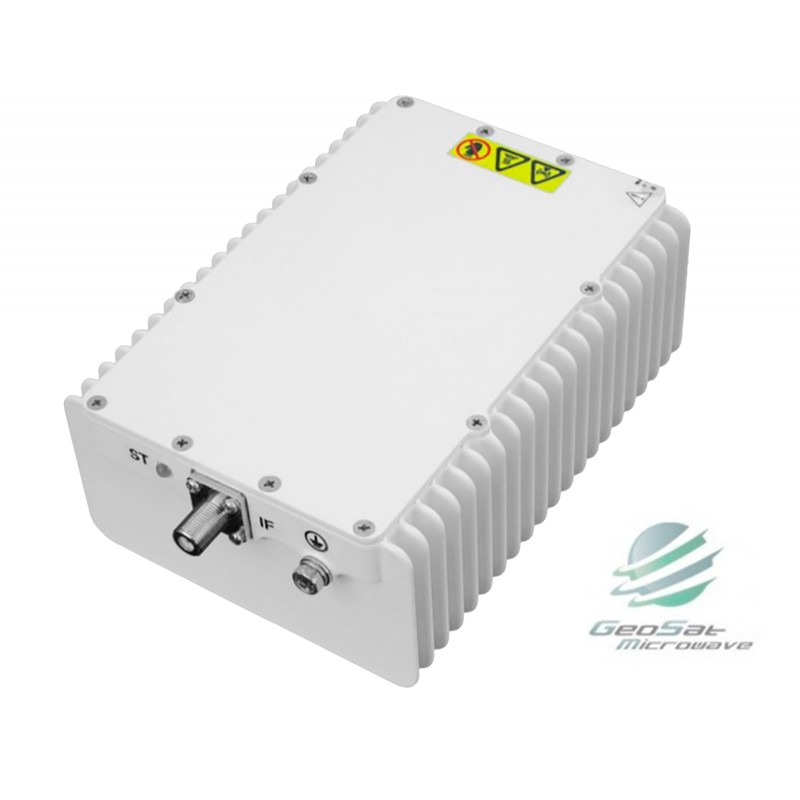

GeoSat 8W C-Band Extended (5.85 ~ 6.725GHz) BUC Block Up-Converter

GB8C2N

New

  • Output power - 55 W
  • Input Freq. - 5.850-6.725 GHz
  • Gain Stabilit - 4 dB p-p
  • RF Output Connector - WR137 (Grooved)
  • Power supply - +18 to +36 VDC, via IFL cable

More details

Specifications:

Section Item Specification
  RF Specifications RF Frequency 5.850-6.725 GHz
IF Frequency 950-1825 MHz
  External Reference 10 MHz, 0±5 dBm
Saturated Output Power ≥39 dBm
Rated Output Power 39 dBm
ACPR@2dB back-off from Rated Power ≤ -26 dBc
Small Signal Gain 60 dB
Gain Variation 1 dB p-p/ 36 MHz
4 dB p-p/ 575 MHz
5 dB p-p/ 875 MHz
Gain Stability 4 dB p-p
  Receive Band Noise Density -87 dBm/ 4 KHz max.
@3.4-4.8 GHz
Phase Noise -65 dBc/Hz @100 Hz
-75 dBc/Hz @1 KHz
-85 dBc/Hz @10 KHz
-95 dBc/Hz @100 KHz
Output Spurious ≤ -55 dBc
Power Supply Power Supply +18 to +36 VDC, via IFL cable
Power Supply Draw
@Rated Output Power
55 W
Interface RF Output Connector WR137 (Grooved)
RF Output VSWR 2:1
IF Input Connector F-Type Female
IF Input VSWR 2:1
  Physical Parametrs Size 164*112*64 mm
  Weight  1.2 Kg
  Operating Temperature  -40 to +60
  Humidity  0-100% (Condensing)
  Altitude 0-10000 F ASL
  -



Download the Specification in PDF Format

8W C-Band Block Up-Converter (BUC) GB8C1N Extended Specsheet
