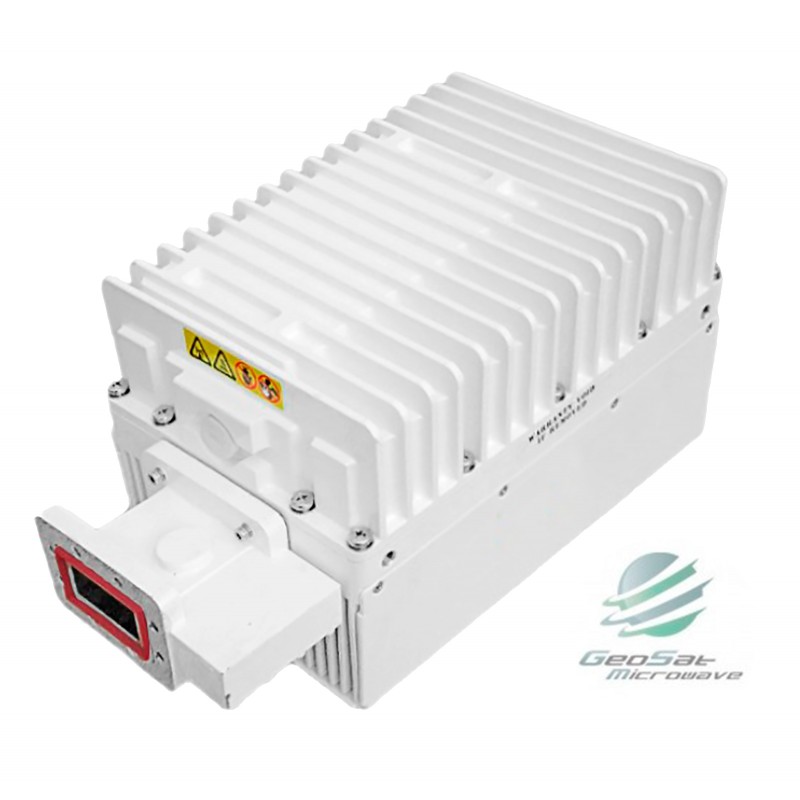

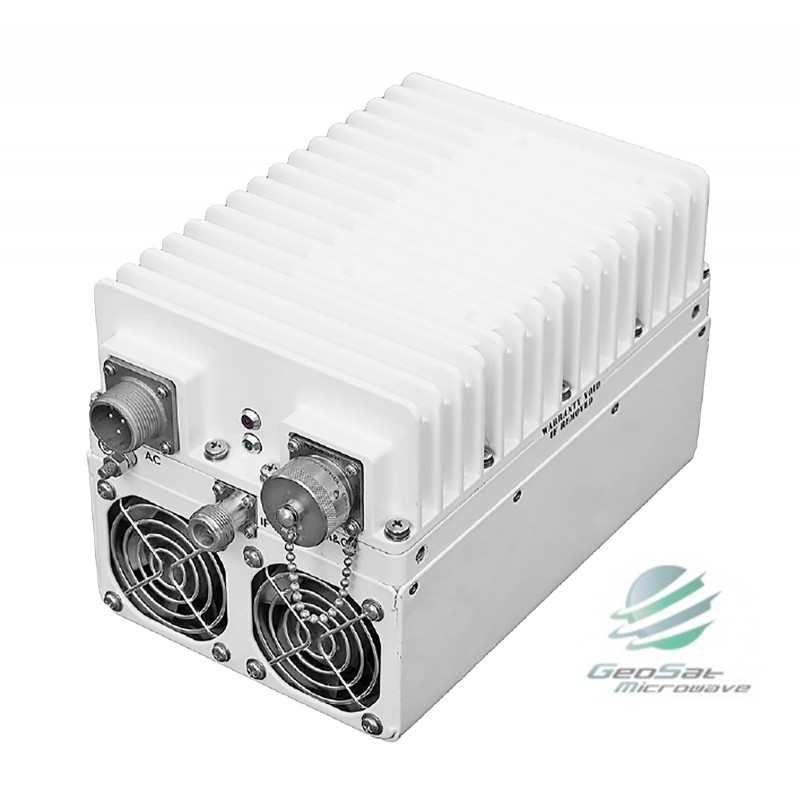

GeoSat 20W C-Band Extended (5.85 ~ 6.725GHz) BUC Block Up-Converter

GB20C2N

New

  • Output power - 160 W
  • Input Freq. - 5.850-6.725 GHz
  • Local Frequency - 4900 MHz
  • Gain Stability - ±1.5 dB
  • RF Output Connector - WR137 (Grooved)
  • Power supply - 85 to 265 VAC

More details

Specifications:

Section Item Specification
  RF Specifications RF Frequency 5.850-6.725 GHz
IF Frequency 950-1825 MHz
Local Frequency 4900 MHz
  External Reference 10 MHz, 0±5 dBm
Saturated Output Power 43.5 dBm
Rated Output Power 43 dBm
IMD3 @3dB back-off from Rated Output Power ≤ -25 dBc
Small Signal Gain 70 dB
Gain Variation 1 dB p-p/ 36 MHz
3 dB p-p/ 575 MHz
3 dB p-p/ 875 MHz
Gain Stability ±1.5 dB
  Gain Adjustment Range 20 dB (Step: 0.1 dB)
Phase Noise -65 dBc/Hz @100 Hz
-75 dBc/Hz @1 KHz
-85 dBc/Hz @10 KHz
-95 dBc/Hz @100 KHz
Output Spurious ≤ -55 dBc
Power Supply Power Supply 85 to 265 VAC (47-63 Hz)
Power Supply Draw
@Rated Output Power
160 W
Interface RF Output Connector WR137 (Grooved)
RF Output VSWR 1.25:1
IF Input Connector N-Type Female
IF Input VSWR 1.5:1
Power Supply Connector ACS02E-14S-7P
Monitor and Control Connector PT02E-14-19P
RS-485, RS-232 & Ethernet
LED Indicators LEDs off: Equipment func-tion properly
Yellow: PLL unlock alarm
  Physical Parametrs Size 206*136*136 mm
  Weight  5  Kg
  Operating Temperature  -40 to +60
  Humidity  0-100% (Condensing)
  Altitude 0-10000 F ASL
  -



Download the Specification in PDF Format

20W C-Band Block Up-Converter (BUC) GB20C2N Extended Specsheet
