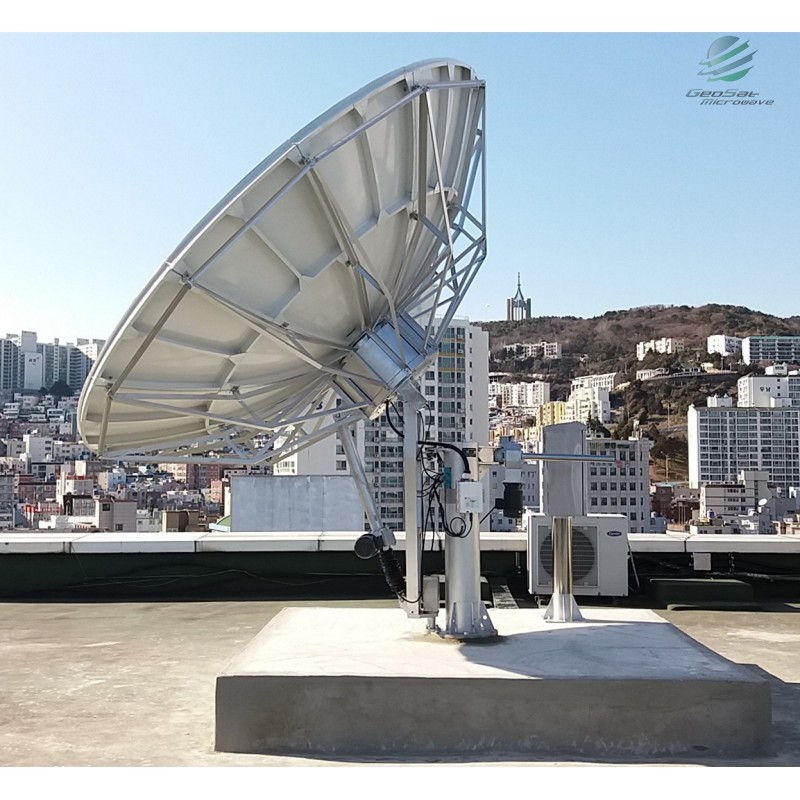

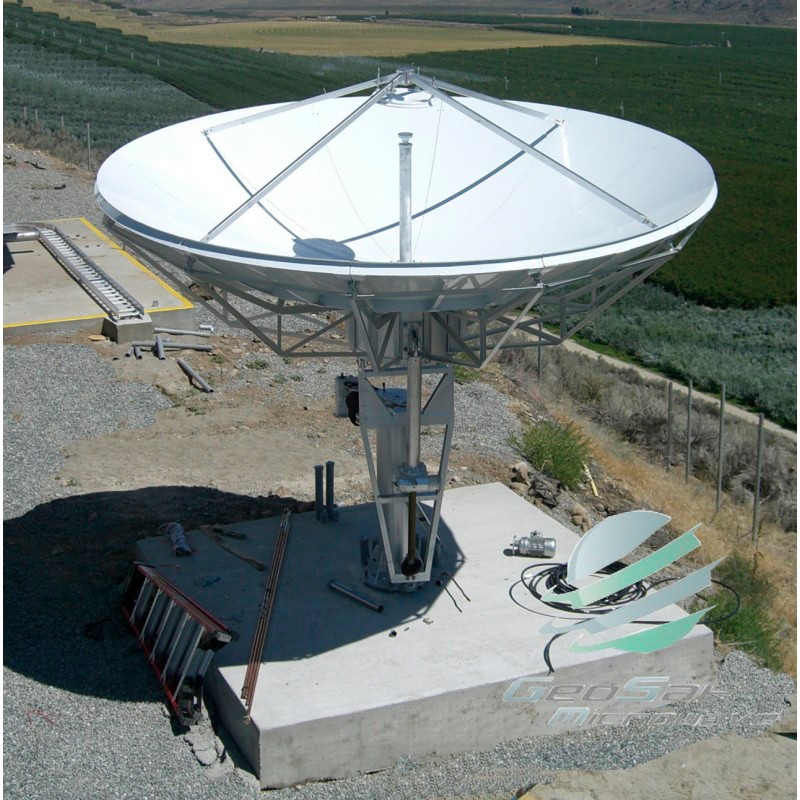

GeoSat 3.7 Meter C-Band (5.85~6.725, 3.4~4.2 GHz) VSAT Antenna

GA37MCTXRX

New

• Conform to CCIR 580 and INTELSAT Requirements
• High G/T, Excellent Sidelobe Performance
• Hot-dipped Galvanized Mount
• Switch for C Band Linear and Circular Polarization Feed
• Ring-focus Antenna, C Band

More details

Specifications:

ELECTRICAL SPECIFICATION

Item

Specification



C-Band

Receive

Transmit



Operation Frequency, GHz

3.4~4.2

5.85~6.725

Gain, Mid-band, dBi

42.2

45.4

Polarization

Linear/Circular

XPD (on Axis), dB

35

35

XPD (across 1dB Beam width), dB

33

33



Axial Ratio(Circular-Polarized), 2-port Feed 1.3

1.09

VSWR 1.25

1.25

Antenna Noise Temperature


10°Elevation

35°K

20°Elevation

29°K



40°Elevation

25°K

-3dB Beam width, Mid-band

1.25°

0.82°
Typical G/T(EL>10°)

24dB/°K(70°LNA)

TX. Power Capability, KW

5

Feed Interface

CPR-229G

PR-137G

Feed Insertion Loss

0.2

0.2

Isolation, TX to Rx,dB

90

First Side Iobe

-14

-14

90% Peaks under Following Envelop

29-25logθ(1°≤θ<20°)

29-25logθ(1°≤θ<20°)

MECHANICAL SPECIFICATION

Item

Specification



Antenna Diameter

3.7 m



Antenna Type

Ring Focus



Mount Type

El. Over AZ.



Surface Accuracy (RMS)

≤ 0.5mm



Antenna Pointing Range and speed



                           Azimuth

Standard type: +75°,+60° (Continuous), 0.05°/s

Custom type: 0°~ 360° (Continuous), 0.05°/s



                           Elevation

3°~ 90° (Continuous), 0.05°/s



                           Polarization

360° (Continuous), 0.1°/s



Drive Mode

Manual or Motorized

ENVIRONMENTAL SPECIFICATION

Item

Specification



Operational Wind

72 km/h Gusting to 97 km/h



Survival Wind

216 km/h

Temperature

-40℃~+60℃

Relative Humidity

100%

Seismic (Survival) 0.3g(H), 0.15g(V)
Solar Radiation

1135Kcal/ h/ m2

Ice Loading

13mm Operational; 25mm Survival



Download the Specification in PDF Format

3.7 Meter C-Band VSAT Antenna GA37MCTXRX Specsheet
