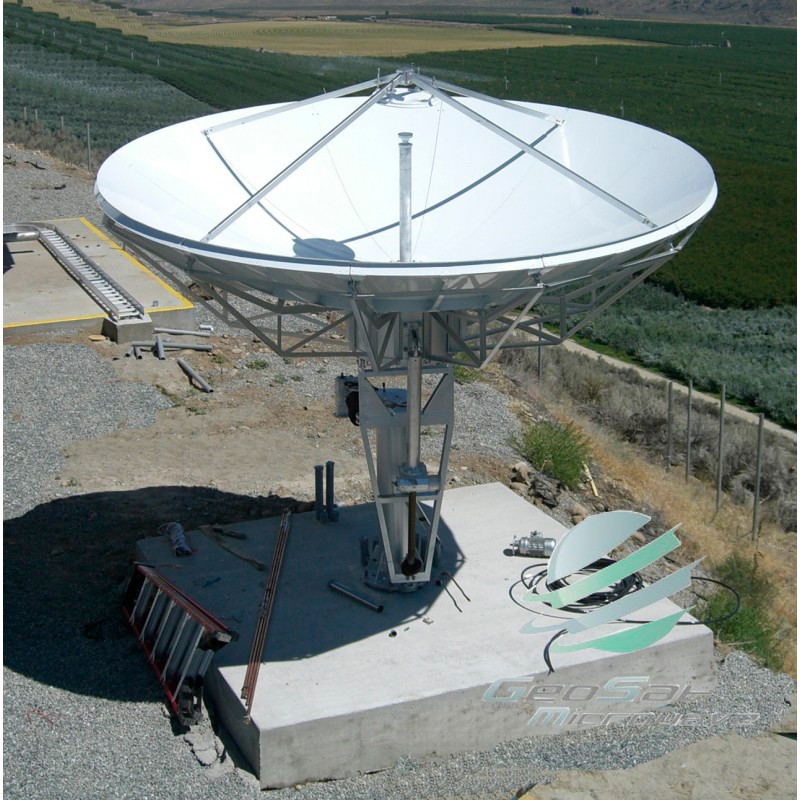

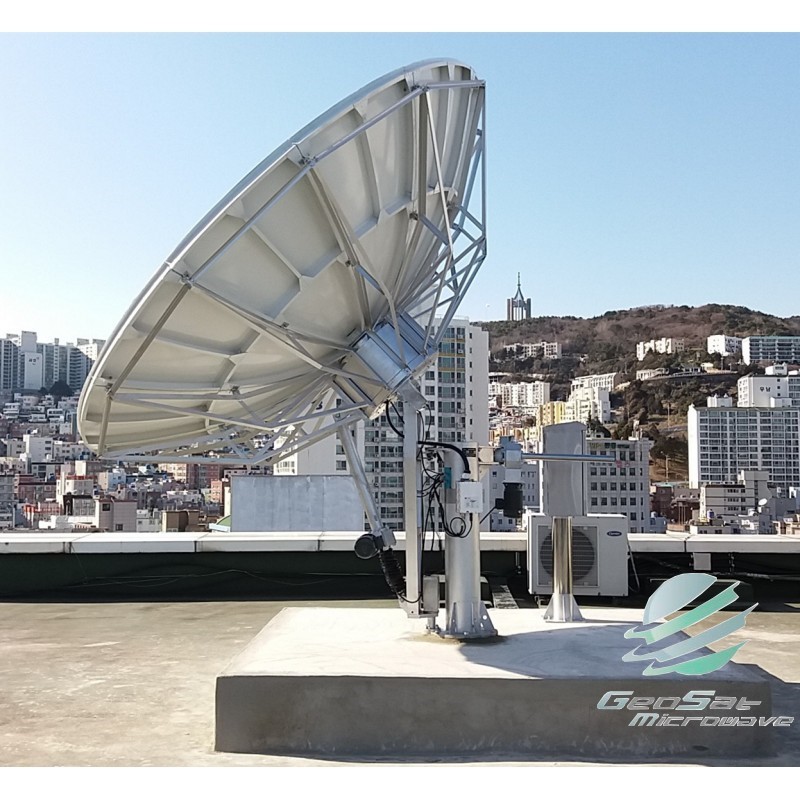

GeoSat 3.7 Meter KU-Band (13.75~14.5, 10.7~12.75 GHz) VSAT Antenna

GA37MKUTXRX

New

• Dual bands are switchable
• Low power consumption
• Higher reliability from integrated design principle
• Compact size and light weight
• Meet ETSI, FCC standards

More details

Specifications:

ELECTRICAL SPECIFICATION

Item

Specification



Ku-Band

Receive

Transmit



Operation Frequency, GHz

10.7~12.75

13.75~14.5

Gain, Mid-band, dBi

51.4

52.7

Polarization

Linear

XPD (on Axis), dB

35

35

XPD (across 1dB Beam width), dB

33

33



Axial Ratio(Circular-Polarized), 2-port Feed
VSWR 1.25

1.25

Antenna Noise Temperature


10°Elevation

49°K

20°Elevation

39°K



40°Elevation

35°K

-3dB Beam width, Mid-band

0.44°

0.38°
Typical G/T(EL>10°)

30.6dB/°K(70°LNA)

TX. Power Capability, KW

2

Feed Interface

WR-75

WR-75

Feed Insertion Loss

0.25

0.2

Isolation, TX to Rx,dB

85

First Side Iobe

-14

-14

90% Peaks under Following Envelop

29-25logθ(1°≤θ<20°)

29-25logθ(1°≤θ<20°)

MECHANICAL SPECIFICATION

Item

Specification



Antenna Diameter

3.7 m



Antenna Type

Ring Focus



Mount Type

El. Over AZ.



Surface Accuracy (RMS)

≤ 0.5mm



Antenna Pointing Range and speed



                           Azimuth

Standard type: +75°,+60° (Continuous), 0.05°/s

Custom type: 0°~ 360° (Continuous), 0.05°/s



                           Elevation

3°~ 90° (Continuous), 0.05°/s



                           Polarization

360° (Continuous), 0.1°/s



Drive Mode

Manual or Motorized

ENVIRONMENTAL SPECIFICATION

Item

Specification



Operational Wind

72 km/h Gusting to 97 km/h



Survival Wind

216 km/h

Temperature

-40℃~+60℃

Relative Humidity

100%

Seismic (Survival) 0.3g(H), 0.15g(V)
Solar Radiation

1135Kcal/ h/ m2

Ice Loading

13mm Operational; 25mm Survival



Download the Specification in PDF Format

3.7 Meter KU-Band VSAT Antenna GA37MKUTXRX Specsheet
