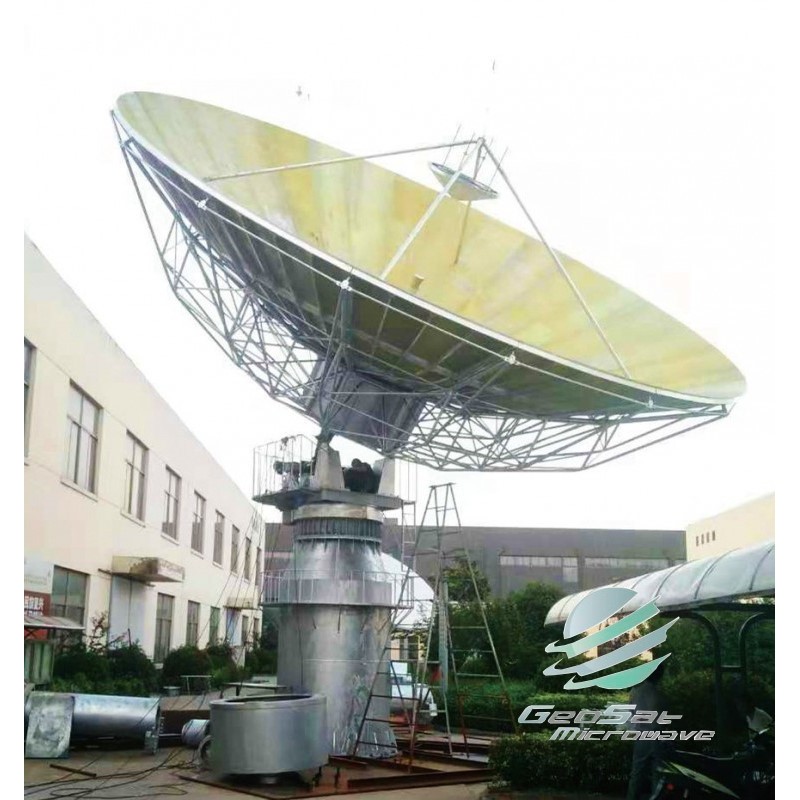

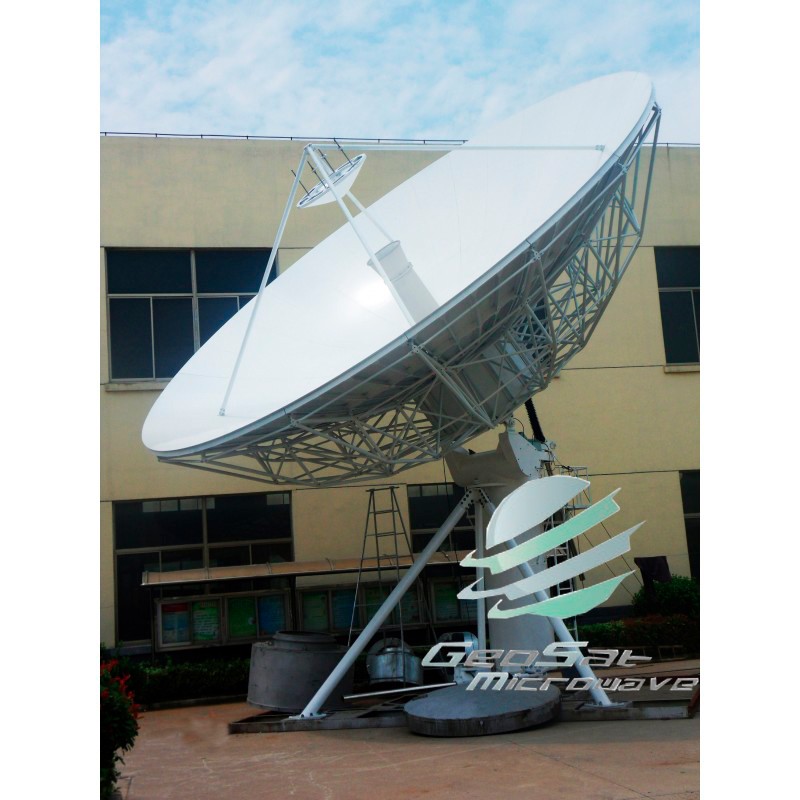

GeoSat 9.0 Meter KU-Band (13.75~14.5, 10.7~12.75 Ghz) Earth Station Antenna

GA90MKUTXRX

New

• Conform to CCIR 580 and INTELSAT Requirements
• High G/T, Excellent Sidelobe Performance
• Hot-dipped Galvanized Mount
• Switch for C Band Linear and Circular Polarization Feed
• Ring-focus Antenna, Ku Band

More details

Specifications:

ELECTRICAL SPECIFICATION

Item

Specification



Ku-Band

Receive

Transmit



Operation Frequency, GHz

10.7~12.75

13.75~14.5

Gain, Mid-band, dBi

59.4

60.5

Polarization

Linear

XPD (on Axis), dB

35

35

XPD (across 1dB Beam width), dB

33

33



Axial Ratio(Circular-Polarized), 2-port Feed
VSWR 1.25

1.25

Antenna Noise Temperature


10°Elevation

61°K

20°Elevation

50°K



40°Elevation

43°K

-3dB Beam width, Mid-band

0.2°

0.16°
Typical G/T(EL>10°)

36.3dB/°K(140°LNA)

TX. Power Capability, KW

2

Feed Interface

WR-75

WR-75

Feed Insertion Loss

0.25

0.2

Isolation, TX to Rx,dB

85

First Side Iobe

-14

-14

90% Peaks under Following Envelop

29-25logθ(1°≤θ<20°)

29-25logθ(1°≤θ<20°)

MECHANICAL SPECIFICATION

Item

Specification



Antenna Diameter

9.0 m



Antenna Type

Cassegrain



Mount Type

El. Over AZ.



Surface Accuracy (RMS)

≤ 0.5mm



Antenna Pointing Range and speed



                           Azimuth

Standard type: +75°,+60° (Continuous), 0.05°/s

Custom type: 0°~ 360° (Continuous), 0.05°/s



                           Elevation

3°~ 90° (Continuous), 0.05°/s



                           Polarization

360° (Continuous), 0.1°/s



Drive Mode

Manual or Motorized

ENVIRONMENTAL SPECIFICATION

Item

Specification



Operational Wind

72 km/h Gusting to 97 km/h



Survival Wind

216 km/h

Temperature

-40℃~+60℃

Relative Humidity

100%

Seismic (Survival) 0.3g(H), 0.15g(V)
Solar Radiation

1135Kcal/ h/ m2

Ice Loading

13mm Operational; 25mm Survival



Download the Specification in PDF Format

9.0 Meter KU-Band Earth Station Antenna GA90MKUTXRX Specsheet
