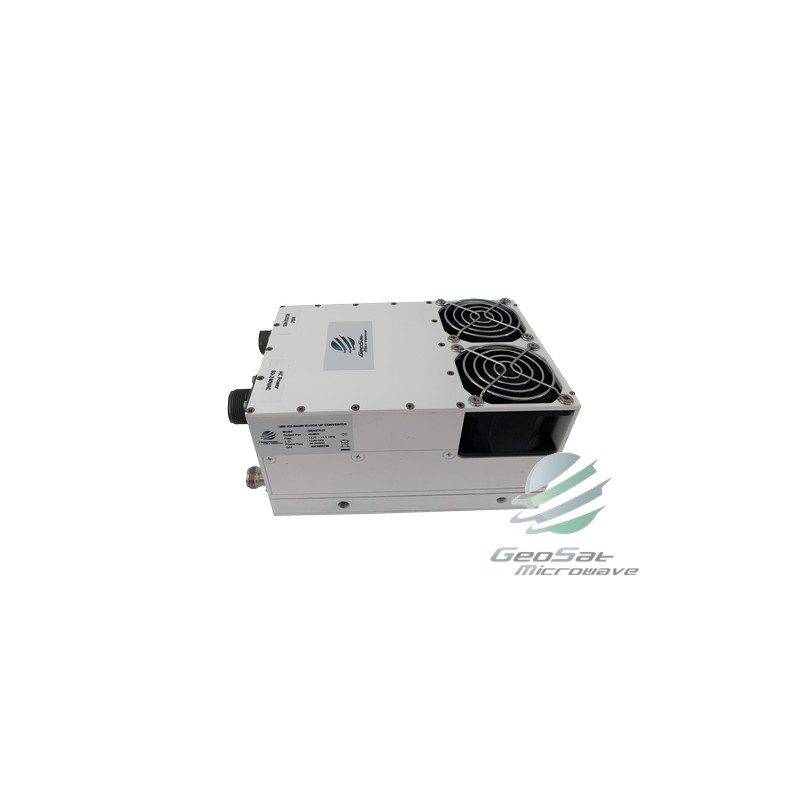

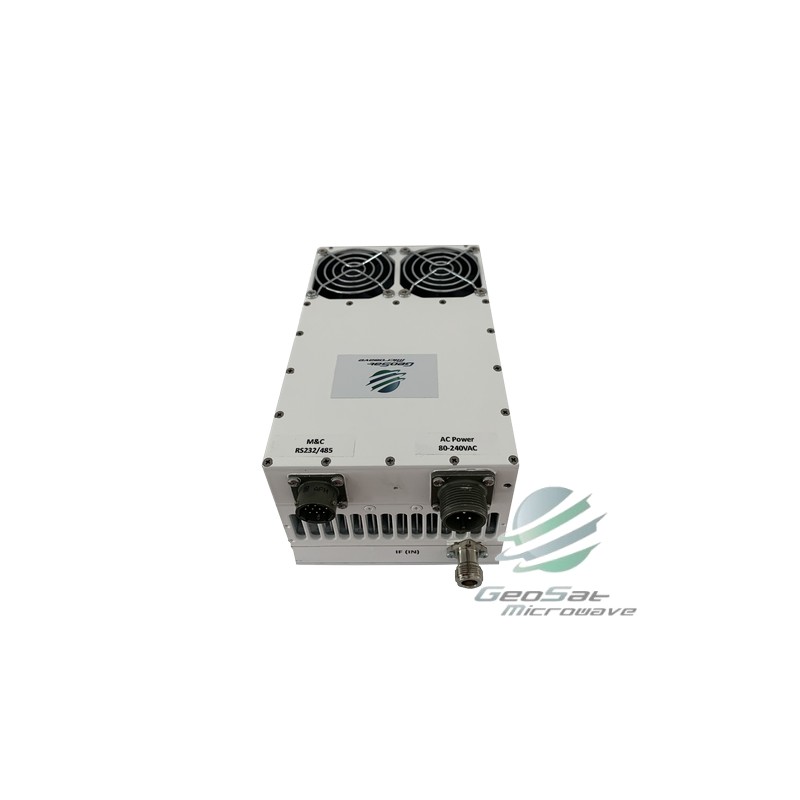

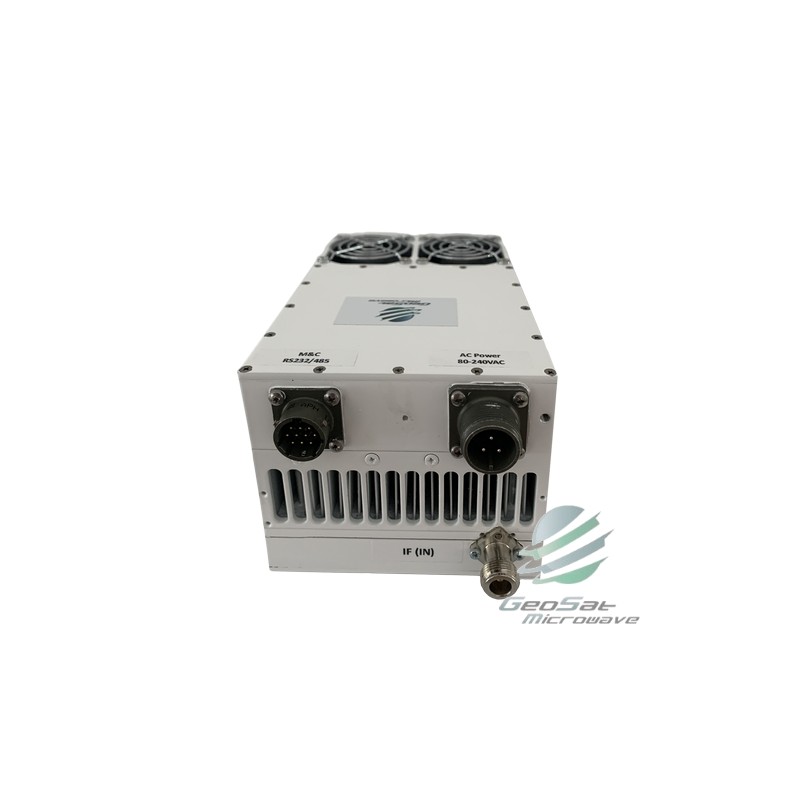

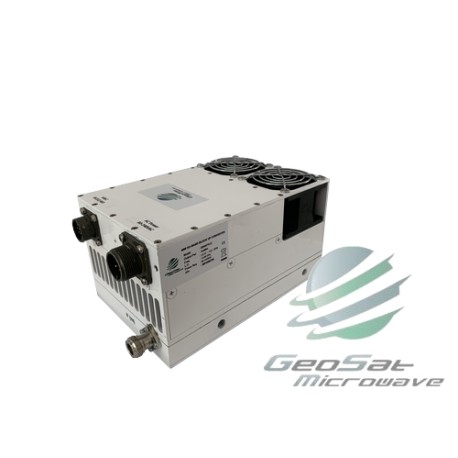

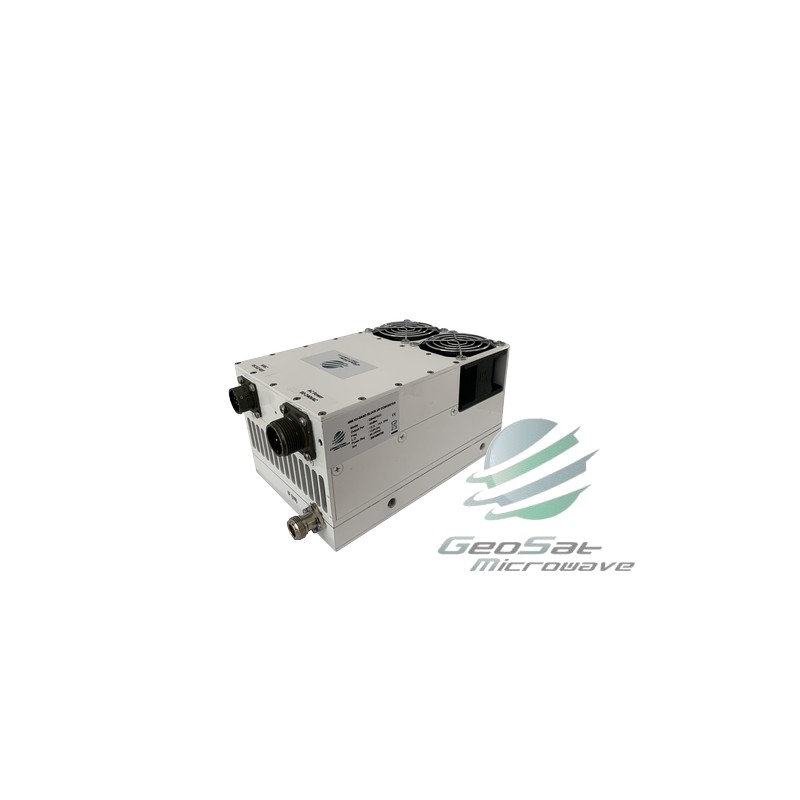

Geosat 25W GAN LOW KU BAND BUC (12.75-13.5 GHz)

GB25KUL3N

New

  • Output Frequency Range 12.75   to 13.50 GHz
  • Input Frequency Range 950 to 1700 MHz
  • LO frequency 11800  MHz
  • M&C optional

More details

Specifications:

Item Specification

OUTPUT Frequency Range

12.75   to 13.50 GHz

INPUT Frequency Range

950 - 1700 MHz

LO Frequency (M&C switching)

12800  MHz

M&C

optional

Output Power @ Psat GaN

45 dBm

Linear Power @ -25dB IMD3

42 dBm

Linear gain

65 dB

Gain Flatness (40 MHz BW)

± 0.5 dB max

Gain Variation Over Temperature

± 1.5 dB max (digital compensation)

Phase Noise

< -68 dBc/Hz at 100 Hz,



< -76 dBc/Hz at 1 kHz



< -86  dBc/Hz at 10 kHz



< -110 dBc/Hz> 100 kHz

Spurious @ P1dB

-55dBc max

Input Return Loss

> -15 dB

IF Input/RF Output Interfaces

50 ohm N-type / WR75

Internal Reference

10 MHz sine wave

Ref Stability

 1x 10E-7 (Minimum requirement)

AC/ DC Voltage /Power consumption

90-250VAC / optional  36-60VDC /  300W

Operating Temperature/ Humidity

-40 °C to 55 °C / up to 98%

Dimensions / Weight

220/240 L x 120 W x 108 H  mm / 4.5kg

Download the Specification in PDF Format
