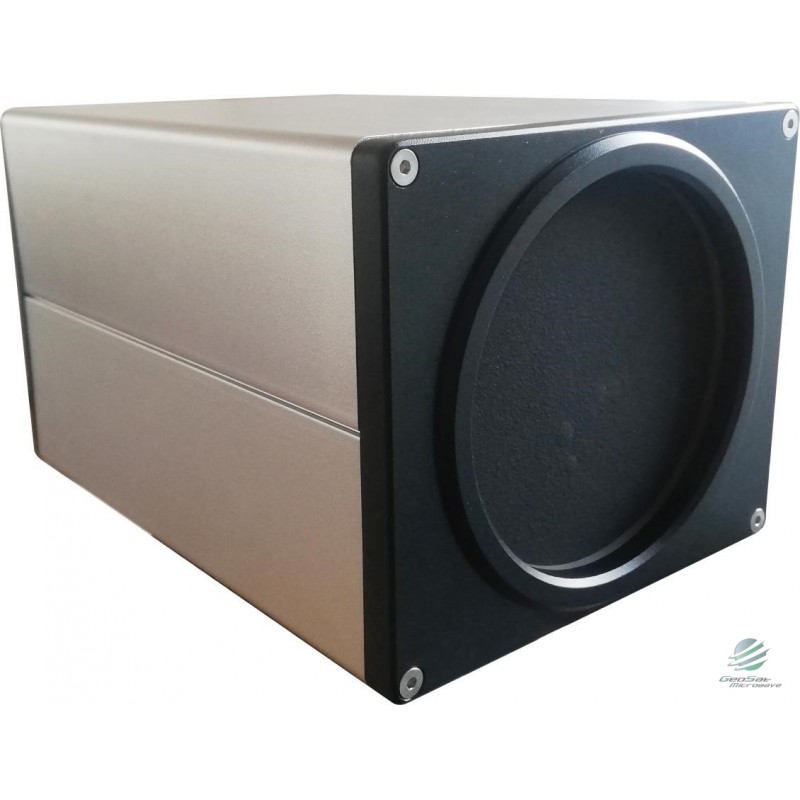

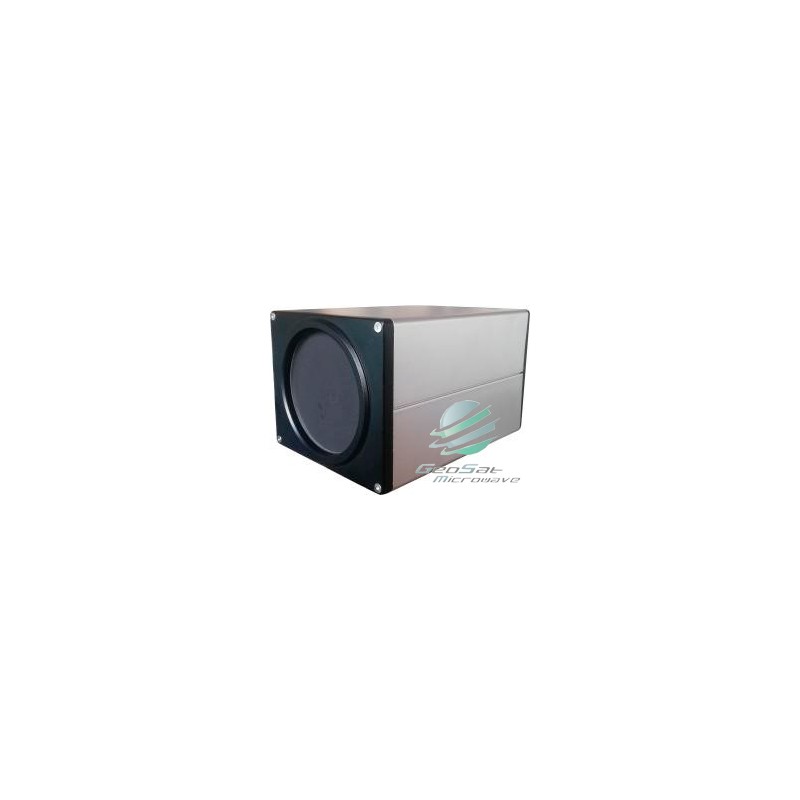

BlackBody Radiation Source
GM-01A
New
- Temperature range: 5℃-50℃ (the temperature setting value should be 2 ℃ higher than the ambient
- temperature)
- Diameter of radiation surface: ≥83mm
- Emissivity: ≥0.95±0.02
- Temperature control stability: ≤±0.3℃/30min
Specifications:
|
TECHICAL DETAILS |
||
|
|
Temperature range | 5℃-50℃ (the temperature setting value should be 2 ℃ higher than the ambient temperature) |
|
|
Diameter of radiation surface | ≥83mm |
|
|
Emissivity | ≥0.95±0.02 |
|
|
Temperature control stability | ≤±0.3℃/30min |
|
|
Temperature resolution | 0.01 ℃ |
|
|
Temperature measurement accuracy | Better than ± 0.3 ℃ (when the set temperature is 36℃) |
|
|
Uniformity of temperature control | ≤ ± 0.2 ℃ |
|
|
Operating environment temperature | 0℃-30℃,≤80%RH without condensation and frosting |
|
|
Overall dimensions (length × width × height) | Overall dimensions (length × width × height):175mm × 120mm × 104 mm |
|
|
Weight | 2kg |
|
Download the Specification in PDF Format |
||
 |
BlackBody Radiation Source GM-01A Specsheet |
|
| |
||
